Retirement Home, Old Age Home, Elder Care 2D DWG Plan for AutoCAD

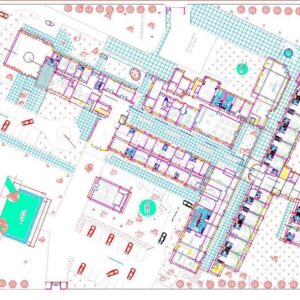

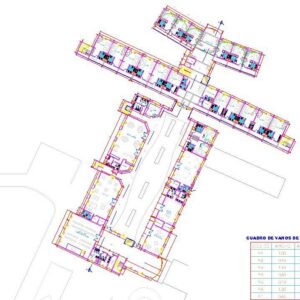

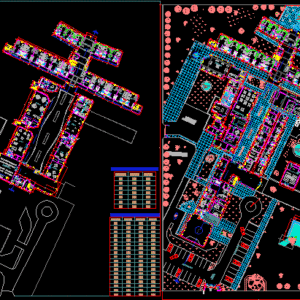

Plan view of retirement home. This plan has first and second floor. Plan view of first floor shows- two parking lot, water sources, chapel, hall, auditorium, administration, Secretary room, storage area, green house, bio-garden, nutritionist, hydrotherapy, massage room, swimming pool with terrace, 6 double bed bedroom, thirteen 2 single bed bedrooms and dining room. Plan view of second floor shows – multiple uses hall, toilet for men and women, musical room, games room, library, 13 single bed bedrooms, 6 double bed bedroom with attached bathroom. The entire center is fully covered with gardening and landscaping. Total foot print area of the plan is approximately 14200 sq meters.
| Language | English |
| Drawing Type | Plan |
| Category | Hospital & Health Centres |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | Over 5000 m² (53819.5 ft²) |
| Building Features | A/C, Pool, Fireplace, Deck / Patio, Car Parking Lot, Garden / Park |
| Tags | autocad, DWG, geriatric |
