Retirement House, Nuns House 2D DWG Plan for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

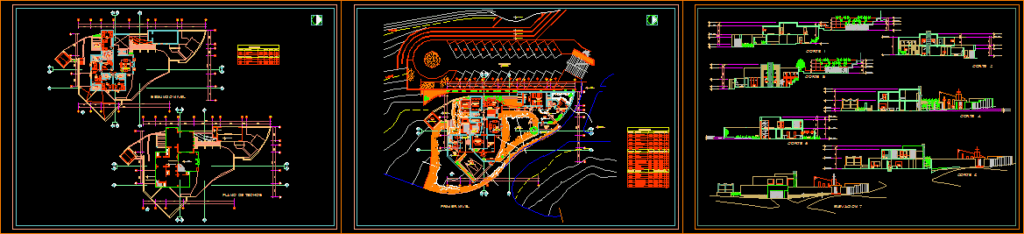

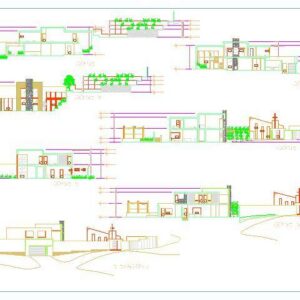

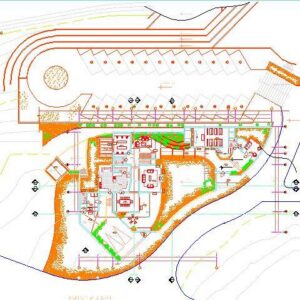

Plan, elevation and sectional views of retirement house or Nuns House. It has ceiling plan, ground or primary level, second level. The primary level has entrance, garden, waiting hall, dining, reception, prayer house (chapel), library, garage, patio and 24 places parking lot. The second floor has 4 bedrooms with community hall. Total foot print area of the plan is approximately 11800 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hospital & Health Centres |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | Over 5000 m² (53819.5 ft²) |
| Building Features | |
| Tags | autocad, block, DWG, elevation, house, plan, section |
