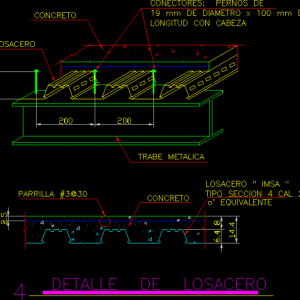

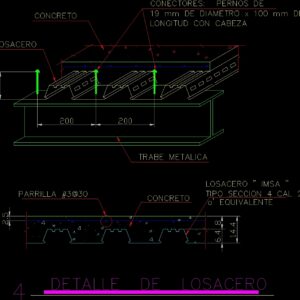

Ribbed slab

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail of losacero, grill, concrete, the seal, type lime section, losacero imsa, or the equivalent, concrete, lock metal, mm diameter mm, connectors:, head length

Raw text data extracted from CAD file:

\A1;200 \A1;2.5 \A1;100 \A1;200 \A1;8 \A1;6.4 \A1;14.4 200 DETALLE DE LOSACERO 4 PARRILLA #3@30 2.5 100 200 CONCRETO LOSACERO TIPO SECCION 4 CAL 22 LOSACERO " IMSA " o' EQUIVALENTE CONCRETO 8 6.4 14.4 TRABE METALICA 19 mm DE DIAMETRO x 100 mm DE CONECTORES: PERNOS DE LONGITUD CON CABEZA

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, DWG, hangar, lagerschuppen, ribbed, ribbed slab, roof, shed, slab, structure, terrasse, toit
