Road Project DWG Full Project for AutoCAD

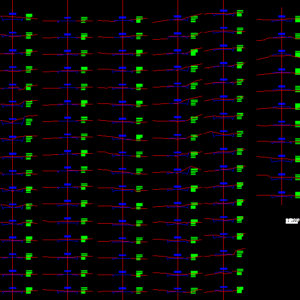

Planes in Autocad tracts a road with their sections and details of road

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ng, province :, district :, sheet number :, drawing :, scale :, date :, signature :, locality :, district municipality of pocsi, project:, asphalt road improvement, pocsi la guicchuna crossing piaca tuctumpaya, plane :, jlrg, gjlrg, arequipa, pocsi, indicated, july, ing., plant, longitudinal profile, sewer detail, typical section, topographic plant, region, province, district, plate number, drawing, scale, date, design, signature, location, user waypoint, waypoint, unknown, encirclement, ejecar, sta, brd, axis, post, housing, local, reserv, ejeb, est, spbm, ejeasf, road annexes piaca tuctumpaya, road omate, annex huicchuna, slope, elevation , sub-grade, ground, height cut, height fill, alignment, mileage, granular basis, level, subgrade, natural terrain, parking, lp, track, sidewalk, garden, cut a – a, there are mailboxes, original plant, plant rotated, variable, variable, width, depth, compacted

Raw text data extracted from CAD file:

N.G. N.G. N.G. PROVINCIA: DISTRITO: Nº DE LÁMINA: DIBUJO: ESCALA: FECHA: FIRMA: LOCALIDAD: MUNICIPALIDAD DISTRITAL DE POCSI PROYECTO: MEJORAMIENTO CARRETERA ASFALTADA POCSI LA GUICCHUNA CRUCE PIACA TUCTUMPAYA PLANO: PLANTA Y PERFIL LONGITUDINAL DE LA PROG. 0+000 A 1+000 JLRG 01 GJLRG AREQUIPA AREQUIPA POCSI INDICADA JULIO 2009 ING. PLANTA PROG. 0+000 A LA 1+000 PERFIL LONGITUDINAL ESC: H: 1/2000 V: 1/200 ESC: 1/2000 PROG. 0+000 A LA 1+000 A-1 PROVINCIA: DISTRITO: Nº DE LÁMINA: DIBUJO: ESCALA: FECHA: FIRMA: LOCALIDAD: MUNICIPALIDAD DISTRITAL DE POCSI PROYECTO: MEJORAMIENTO CARRETERA ASFALTADA POCSI LA GUICCHUNA CRUCE PIACA TUCTUMPAYA PLANO: PLANTA Y PERFIL LONGITUDINAL DE LA PROG. 2+000 A 2+500 JLRG 01 GJLRG AREQUIPA AREQUIPA POCSI INDICADA JULIO 2009 ING. DETALLE DE ALCANTARILLA ESC: 1/100 SECCION TIPICA ESC: 1/100 PLANTA TOPOGRAFICA PROG. 2+000 A LA 2+500 PERFIL LONGITUDINAL ESC: H: 1/2000 V: 1/200 ESC: 1/2000 PROG. 2+000 A LA 2+500 PLANTA PROG. 2+000 A LA 2+500 PERFIL LONGITUDINAL ESC: H: 1/2000 V: 1/200 ESC: 1/2000 PROG. 2+000 A LA 2+500 A-2 \A1;0.05 \A1;0.20 \A1;6.00 \A1;1.50 \A1;2.40 \A1;6.00 \A1;0.20 \A1; (VARIABLE) \A1;1.50 \A1;2.40 \A1;6.00 \A1;0.20 \A1;30.00 \A1;.60 \A1;.40 \A1;6.00 \A1;.30 \A1;.30 \A1;.40 \A1;.40 \A1;.10 \A1;.30 \A1;.40 \A1;.40 \A1;.20 \A1;1.00 \A1;.20 \A1;.60 \A1;.20 \A1;.20 \A1;.91 \A1;6.00 \A1;.94 \A1;.20 \A1;.60 \A1;.20 \A1;2.85 \A1;.50 \A1;.20 \A1;.50 \A1;3.00 \A1;.10 \A1;135° \A1;1.30 \A1;.60 \A1;1.00 \A1;7.85 \A1;9.10 \A1;.20 \A1;.80 \A1;1.34 \A1;0.05 \A1;0.20 \A1;0.20 \A1;6.00 \A1;,50 \A1;,50 \A1;,53 \A1;,71 \A1;,15 \A1;Variable PROVINCIA: DISTRITO: Nº DE LÁMINA: DIBUJO: ESCALA: FECHA: FIRMA: LOCALIDAD: MUNICIPALIDAD DISTRITAL DE POCSI PROYECTO: MEJORAMIENTO CARRETERA ASFALTADA POCSI LA GUICCHUNA CRUCE PIACA TUCTUMPAYA PLANO: PLANTA Y PERFIL LONGITUDINAL DE LA PROG. 1+000 A 2+000 JLRG 01 GJLRG AREQUIPA AREQUIPA POCSI INDICADA JULIO 2009 ING. DETALLE DE ALCANTARILLA ESC: 1/100 SECCION TIPICA ESC: 1/100 PLANTA TOPOGRAFICA PROG. 1+000 A LA 2+000 PERFIL LONGITUDINAL ESC: H: 1/2000 V: 1/200 ESC: 1/2000 PROG. 1+000 A LA 2+000 PLANTA PROG. 1+000 A LA 2+000 PERFIL LONGITUDINAL ESC: H: 1/2000 V: 1/200 ESC: 1/2000 PROG. 1+000 A LA 2+000 A-1 \A1;0.05 \A1;0.50 \A1;0.50 \A1;VARIABLE \A1;ANCHO \A1;PROFUNDIDAD \A1;0.20 \A1;,50 \A1;,50 \A1;,67 \A1;Variable REGIÓN PROVINCIA DISTRITO Nº DE LÁMINA DIBUJO ESCALA FECHA DISEÑO FIRMA LOCALIDAD A 4 A 3 A 2 A 1 A 0 \A1;a \A1;d \A1;,17 128 128 User Waypoint 19 K 247584 8171300 3184 m Waypoint Symbol & Name Unknown 129 129 User Waypoint 19 K 246805 8171832 3170 m Waypoint Symbol & Name Unknown 130 130 User Waypoint 19 K 246805 8171833 3171 m Waypoint Symbol & Name Unknown 131 131 User Waypoint 19 K 246041 8172282 3130 m Waypoint Symbol & Name Unknown ACTIVE LOG 170 ACTIVE LOG 170 5 02/07/2009 11:23:28 a.m. 0:02:29 12 m 0.3 kph ACTIVE LOG 170 19 K 246809 8171838 02/07/2009 11:23:28 a.m. 3173 m ACTIVE LOG 170 19 K 246807 8171834 02/07/2009 11:23:39 a.m. 3173 m 5 m 0:00:11 2 kph 205.611° true ACTIVE LOG 170 19 K 246807 8171831 02/07/2009 11:24:00 a.m. 3170 m 2 m 0:00:21 0.4 kph 180° true ACTIVE LOG 170 19 K 246804 8171831 02/07/2009 11:25:49 a.m. 3170 m 2 m 0:01:49 0.1 kph 270° true ACTIVE LOG 170 19 K 246807 8171831 02/07/2009 11:25:57 a.m. 3169 m 2 m 0:00:08 1.0 kph 90° true ACTIVE LOG 171 ACTIVE LOG 171 2 02/07/2009 11:26:43 a.m. 0:00:52 0 m 0 kph ACTIVE LOG 171 19 K 246804 8171831 02/07/2009 11:26:43 a.m. 3180 m ACTIVE LOG 171 19 K 246804 8171831 02/07/2009 11:27:35 a.m. 3170 m 0 m 0:00:52 0 kph 0° true ACTIVE LOG 172 ACTIVE LOG 172 2 02/07/2009 02:15:54 p.m. 0:01:19 7 m 0.3 kph ACTIVE LOG 172 19 K 246041 8172276 02/07/2009 02:15:54 p.m. 3140 m ACTIVE LOG 172 19 K 246040 8172283 02/07/2009 02:17:13 p.m. 3129 m 7 m 0:01:19 0.3 kph 0° true pr 3113.519 12 pr 3114.066 11 pr 3120.586 10 pr 3123.037 9 pr 3125.689 8 pr 3129.620 7 pr 3136.356 6 pr 3131.617 5 pr 3127.532 4 pr 3124.873 3 pr 3122.473 2 pr 3116.342 1 SP 3095.173 528 SP 3093.540 530 SP 3093.606 618 SP 3092.456 533 SP 3093.639 527 SP 3091.030 620 SP 3089.761 532 SP 3088.921 621 SP 3092.893 531 SP 3093.202 526 SP 3092.560 525 PR 3095.583 519 PR 3095.672 515 SP 3094.488 619 SP 3087.774 539 PR 3095.906 602 PR 3096.757 605 PR 3096.541 607 PR 3096.693 606 CERCO 3096.430 604 CERCO 3096.079 603 PR 3096.109 600 PR 3096.342 541 PR 3097.893 540 PR 3097.993 617 PR 3096.640 616 PR 3096.551 615 PR 3096.093 610 EJECAR 3096.236 609 PR 3096.564 608 EJECAR 3095.892 599 PR 3095.843 598 EJECAR 3096.344 614 PR 3096.158 613 PR 3096.545 612 PR 3096.240 611 EJECAR 3096.276 542 PR 3096.278 546 PR 3096.405 548 EJECAR 3096.322 547 PR 3098.147 549 PR 3096.281 544 PR 3096.166 543 PR 3096.460 550 PR 3096.784 545 PR 3096.490 554 STA 3096.568 534 PR 3096.572 555 PR 3096.235 518 EJECAR 3096.271 517 PR 3096.136 516 EJECAR 3097.728 512 CERCO 3097.750 511 PR 3098.134 510 PR 3097.279 514 PR 3097.785 513 PR 3101.866 509 PR 3101.647 508 EJECAR 3101.595 507 PR 3101.707 506 PR 3102.358 505 PR 3104.541 500 EJECAR 3105.193 502 PR 3105.265 501 PR 3105.436 503 STA 3108.220 472 PR 3106.345 499 PR 3107.781 498 EJECAR 3107.767 497 PR 3107.935 496 PR 3108.569 495 PR 3110.244 490 PR 3109.919 489 PR 3105.931 504 PR 3108.817 494 EJECAR 3110.158 491 PR 3110.423 493 SP`PR 3112.722 492 PR 3112.082 488 PR 3111.575 487 EJECAR 3111.675 486 PR 3111.785 485 PR 3112.737 479 STA 3111.071 473 PR 3111.016 484 PR 3112.934 482 PR 3111.625 483 EJECAR 3113.311 470 EJECAR 3112.979 481 CERCO 3113.132 480 BRD 3113.378 471 BRD 3113.345 469 PR 3113.830 478 PR 3114.082 477 EJECAR 3114.064 476 PR 3114.161 475 EJECAR 3114.585 467 BRD 3114.620 466 BRD 3115.342 463 PR 3113.236 474 BRD 3114.519 468 BRD 3115.066 465 EJECAR 3115.203 464 EJECANAL 3116.708 458 EJECANAL 3116.741 457 EJECANAL 3116.143 456 EJECANAL 3115.954 462 EJECANAL 3116.520 461 EJECANAL 3116.482 460 EJECANAL 3116.483 459 BRD 3121.473 453 EJECAR 3121.295 454 BRD 3121.586 455 EJECAR 3123.724 451 EJECAR 3123.873 450 BRD 3124.037 452 EJECAR 3126.532 449 EJECAR 3126.482 448 BRD 3126.578 447 STA 3126.882 417 BRD 3126.689 416 PR 3094.851 589 PR 3095.734 601 PR 3095.318 597 PR 3095.278 593 EJECAR 3095.455 592 PR 3095.632 591 PR 3094.909 590 PR 3095.052 596 PR 3094.432 594 PR 3094.284 588 PR 3095.248 587 PR 3095.125 586 PR 3094.925 585 PR 3094.880 584 PR 3093.841 583 PR 3095.040 524 EJECAR 3095.260 523 BRD 3095.162 522 PR 3094.580 521 PR 3094.866 520 PR 3092.709 582 PR 3094.473 595 SP 3094.751 529 STA 3128.449 418 BRD 3160.597 314 SP 3142.554 436 SP 3144.490 431 SP 3147.169 426 SP 3147.197 428 BRD 3150.688 360 SP 3151.872 396 SP 3151.810 395 SP 3153.609 391 BRD 3151.790 359 EJECAR 3153.103 355 BRD 3153.281 354 SP 3155.111 390 SP 3154.332 392 SP 3158.685 387 BRD 3156.611 353 SP 3155.842 389 SP 3157.605 388 STA 3157.511 338 SP 3157.665 393 SP 3157.650 386 EJECAR 3156.049 352 BRD 3156.426 351 SP 3158.326 385 EJECAR 3157.880 349 BRD 3157.883 348 BRD 3158.499 350 EJECANAL 3159.853 345 EJECANAL 3159.639 344 EJECANAL 3159.190 343 EJECANAL 3159.127 342 EJECANAL 3159.399 341 STA 3157.921 339 EJECANAL 3158.509 327 EJECANAL 3159.134 326 BRD 3159.088 325 BRD 3159.188 324 BRD 3159.133 323 EJECANAL 3158.649 322 BRD 3159.651 321 EJECAR 3159.511 320 SP 3160.252 340 BRD 3161.017 312 EJECANAL 3160.380 311 SP 3142.107 429 BRD 3130.617 413 BRD 3130.620 415 EJECAR 3130.419 414 BRD 3135.350 412 EJECAR 3135.273 411 BRD 3135.356 410 SP 3137.845 438 SP 3135.190 440 EJECAR 3138.875 407 BRD 3138.956 406 SP 3141.191 437 SP 3141.757 435 SP 3139.259 439 EJECANAL 3138.670 409 BRD 3138.994 408 SP 3143.078 430 SP 3142.376 432 SP 3142.098 445 EJECANAL 3140.836 405 SP 3142.086 443 SP 3141.691 442 SP 3141.491 441 SP 3143.302 433 SP 3144.083 427 SP 3144.759 425 SP 3144.705 423 SP 3143.549 434 SP 3144.890 421 EJECAR 3143.576 402 BRD 3143.697 401 SP 3146.762 424 SP 3147.051 422 SP 3145.292 420 SP 3145.181 400 BRD 3145.854 378 EJECAR 3145.773 377 EJECANAL 3146.748 371 EJECANAL 3146.728 370 EJECANAL 3145.867 369 EJECAR 3147.162 367 SP 3142.923 446 EJECANAL 3142.976 404 BRD 3143.579 403 STA 3143.113 397 EJECANAL 3144.899 375 SP 3144.511 444 STA 3145.514 399 STA 3145.507 398 BRD 3145.922 376 EJECANAL 3146.647 374 EJECANAL 3146.632 373 EJECANAL 3145.600 372 SP 3147.346 419 SP 3149.042 394 BRD 3147.314 368 BRD 3147.223 366 EJECAR 3149.173 364 BRD 3149.316 363 BRD 3149.394 365 EJECAR 3150.555 362 EJECAR 3150.528 361 SP 3151.162 384 SP 3149.382 383 EJECAR 3151.535 358 BRD 3151.588 357 BRD 3153.394 356 SP 3153.550 382 SP 3153.599 381 SP 3155.359 380 EJECANAL 3157.641 347 EJECANAL 3158.519 346 BRD 3159.631 319 POST 3159.349 318 SP 3158.591 379 VIVIENDA 3160.145 317 VIVIENDA 3161.181 316 BRD 3160.654 315 EJECAR 3160.486 313 EJECANAL 3163.735 298 EJECANAL 3161.722 310 POST 3161.512 309 CERCO 3162.875 306 EJECANAL 3162.974 305 EJECANAL 3162.708 304 BRD 3163.318 303 VIVIENDA 3162.335 308 VIVIENDA 3163.002 307 EJECAR 3163.015 302 BRD 3163.069 301 POST 3163.505 300 EJECANAL 3163.697 299 EJECANAL 3163.871 291 EJECANAL 3163.778 297 EJECANAL 3163.762 296 EJECANAL 3164.297 295 EJECANAL 3164.289 294 SP 3166.009 337 EJECANAL 3164.383 293 EJECANAL 3164.332 292 EJECANAL 3164.546 290 VIVIENDA 3164.919 286 VIVIENDA 3165.713 285 STA 3165.734 279 SP 3164.479 335 SP 3164.604 336 SP 3165.143 329 EJECANAL 3165.771 289 EJECANAL 3166.183 288 VIVIENDA 3166.421 284 SP 3165.664 331 SP 3166.279 328 POST 3165.424 287 STA 3166.909 280 EJECAR 3167.255 277 SP 3165.739 334 SP 3166.827 330 BRD 3167.105 278 SP 3167.838 333 SP 3169.010 332 VIVIENDA 3168.080 283 BRD 3167.694 276 EJECANAL 3167.087 275 SP 3168.479 249 SP 3168.771 282 POST 3168.581 274 VIVIENDA 3168.521 273 VIVIENDA 3168.486 271 VIVIENDA 3168.996 272 VIVIENDA 3169.066 270 BZ 3169.188 267 EJECANAL 3168.707 262 EJECANAL 3169.384 261 EJECANAL 3169.362 260 EJECANAL 3169.440 259 EJECANAL 3169.383 258 EJECANAL 3168.716 257 VIVIENDA 3169.642 269 VIVIENDA 3170.098 254 VIVIENDA 3169.078 256 VIVIENDA 3170.094 255 POST 3169.988 253 VIVIENDA 3170.117 268 EJECANAL 3168.987 266 BRD 3169.811 265 EJECAR 3169.804 264 BRD 3169.849 263 VIVIENDA 3170.326 252 VIVIENDA 3170.289 251 EJECANAL 3169.287 248 BRD 3170.144 247 EJECAR 3170.040 246 POST 3170.067 230 SP 3168.579 242 SP 3168.086 241 SP1220 3170.265 281 VIVIENDA 3170.673 250 BRD 3170.213 245 POST 3170.516 229 STA 3170.440 231 VIVIENDA 3171.011 228 SP 3171.262 244 VIVIENDA 3170.758 227 SP 3171.941 243 BRD 3170.428 240 EJECAR 3170.340 239 BRD 3170.476 238 EJECANAL 3169.587 237 VIVIENDA 3170.246 236 EJECANAL 3169.741 235 BRD 3170.466 234 EJECAR 3170.448 233 VIVIENDA 3171.095 226 POST 3171.218 225 VIVIENDA 3171.119 224 BRD 3170.594 232 EJECANAL 3169.745 221 EJECANAL 3169.848 220 EJECANAL 3169.930 219 EJECANAL 3169.924 218 BRD 3170.427 202 BZ 3170.539 201 BRD 3170.592 200 VIVIENDA 3170.667 199 POST 3171.012 223 VIVIENDA 3170.474 222 EJECANAL 3169.885 217 EJECANAL 3170.023 216 VIVIENDA 3170.649 215 EJECANAL 3170.095 214 EJECANAL 3170.380 213 BRD 3170.652 197 EJECAR 3170.642 196 BRD 3170.706 195 VIVIENDA 3170.587 194 POST 3170.933 198 VIVIENDA 3170.736 193 SP 3169.410 206 SP 3170.726 203 EJECANAL 3170.338 212 EJECANAL 3170.450 211 EJECANAL 3170.531 210 EJECANAL 3170.591 209 POST 3170.685 192 VIVIENDA 3170.658 191 BZ 3170.762 189 VIVIENDA 3170.755 190 POST 3170.840 188 EJECANAL 3170.914 208 EJECANAL 3170.880 207 BRD 3170.746 178 VIVIENDA 3170.717 187 BRD 3170.676 179 LOCAL 3171.198 180 STA 3170.733 174 VIVIENDA 3170.736 186 POST 3170.857 185 VIVIENDA 3171.080 182 LOCAL 3171.359 181 VIVIENDA 3171.039 160 VIVIENDA 3170.878 184 VIVIENDA 3170.926 183 STA 3171.036 173 SP 3170.421 204 VIVIENDA 3170.710 159 VIVIENDA 3170.626 158 BZ 3170.986 161 BRD 3170.812 155 VIVIENDA 3170.843 156 BRD 3170.635 153 VIVIENDA 3170.461 152 POST 3170.445 151 VIVIENDA 3170.760 157 EJECAR 3170.827 154 VIVIENDA 3170.547 150 VIVIENDA 3170.719 145 VIVIENDA 3170.873 146 VIVIENDA 3170.763 144 VIVIENDA 3170.772 143 VIVIENDA 3170.836 142 VIVIENDA 3170.206 149 POST 3170.317 148 BZ 3170.671 147 SP 3170.131 205 BRD 3170.705 136 EJECAR 3170.485 135 VIVIENDA 3170.839 141 VIVIENDA 3171.049 140 VIVIENDA 3170.941 139 BRD 3170.612 134 POST 3170.521 133 VIVIENDA 3170.521 132 VIVIENDA 3170.733 131 VIVIENDA 3170.928 130 VIVIENDA 3171.222 138 VIVIENDA 3171.274 137 POST 3171.262 129 POST 3171.073 128 VIVIENDA 3171.138 127 BZ 3171.900 125 BRD 3171.832 124 POST 3171.996 123 VIVIENDA 3171.997 122 BRD 3171.960 126 VIVIENDA 3172.366 121 SP 3172.939 172 VIVIENDA 3173.490 120 VIVIENDA 3174.107 119 RESERV 3175.600 113 RESERV 3177.779 114 RESERV 3179.015 115 BRD 3183.530 17 EJECAR 3183.540 16 BRD 3183.473 15 SP 3181.598 67 POST 3174.858 118 VIVIENDA 3174.871 117 SP 3172.964 171 BZ 3174.212 116 VIVIENDA 3175.004 112 SP 3175.863 170 BRD 3176.777 109 BRD 3176.920 111 BZ 3176.817 110 EJECANAL 3178.631 105 EJECANAL 3178.619 104 EJECANAL 3177.703 103 EJECANAL 3177.946 108 EJECANAL 3178.727 107 EJECANAL 3178.621 106 BRD 3180.446 100 POST 3180.647 102 EJECAR 3180.203 101 SP 3178.195 167 SP 3179.464 80 SP 3180.790 162 BRD 3180.865 39 EJEB 3180.315 45 EJEB 3180.854 43 EJEB 3180.847 42 BRD 3180.932 41 EJECAR 3180.956 40 EJEB 3180.948 44 VIVIENDA 3184.857 99 SP 3182.231 90 SP 3182.362 166 SP 3183.324 165 SP 3183.315 164 SP 3184.141 92 SP 3183.648 163 VIVIENDA 3183.782 98 STA 3183.700 94 SP 3181.949 169 SP 3181.641 168 VIVIENDA 3182.622 97 STA 3183.473 95 BZ 3183.109 76 EJECAR 3182.830 74 BRD 3182.980 73 EJEB 3181.773 71 SP 3181.831 177 SP 3184.635 85 SP 3183.739 84 VIVIENDA 3182.910 96 POST 3182.916 75 EJEB 3182.059 70 SP 3183.343 91 EJEB 3182.197 72 STA 3183.323 64 BRD 3183.378 52 BRD 3183.368 54 EJECAR 3183.372 53 SP 3182.432 93 SP 3182.021 175 SP 3183.323 89 BRD 3183.785 51 SP 3183.642 86 SP 3182.259 81 STA 3183.483 65 SP 3183.252 77 EJECAR 3183.783 50 BRD 3183.645 49 EJECAR 3181.751 47 BRD 3181.750 46 BRD 3181.744 48 SP 3182.370 78 SP 3182.944 83 SP 3182.739 82 SP 3183.431 176 SP 3183.451 88 SP 3183.883 87 SP 3182.471 79 SP 3181.752 68 SP 3182.929 62 SP 3184.142 56 BRD 3183.335 20 EJECAR 3183.247 19 BRD 3183.150 18 EJECAR 3183.149 22 BRD 3183.078 21 BRD 3183.249 23 SP 3182.806 57 SP 3183.852 61 SP 3183.766 55 EJECAR 3183.378 28 BRD 3183.199 27 EJECAR 3182.144 37 BRD 3182.093 36 BRD 3181.981 38 BRD 3183.786 35 EJECAR 3183.792 34 BRD 3183.264 30 BRD 3183.377 29 BRD 3183.342 12 BRD 3183.394 32 EJECAR 3183.440 31 BRD 3183.154 14 EJECAR 3183.252 13 BRD 3183.777 33 EST 3184.469 1 SPBM 3184.719 69 EJECAR 3183.268 25 BRD 3183.169 24 BRD 3183.265 26 BRD 3183.081 9 BRD 3182.904 11 EJECAR 3183.091 10 BRD 3183.223 6 BRD 3183.119 8 EJECAR 3183.122 7 BRD 3184.256 4 EJECAR 3184.412 3 BRD 3184.445 5 SP 3182.800 66 SP 3184.144 63 SP 3183.649 60 SP 3183.501 59 SP 3183.400 58 PR 3095.635 558 PR 3095.586 559 PR 3093.134 567 PR 3094.750 563 STA 3095.506 535 PR 3094.929 566 EJECAR 3094.825 564 SP 3084.364 538 SP 3084.902 537 PR 3081.142 648 PR 3081.287 646 PR 3080.957 645 EJECAR 3079.835 703 PR 3080.803 651 PR 3079.734 650 PR 3080.332 712 PR 3080.202 706 PR 3080.305 705 PR 3079.969 704 PR 3078.863 701 PR 3078.936 700 PR 3079.078 656 PR 3080.186 655 PR 3080.659 654 PR 3079.110 652 PR 3081.318 649 EJECAR 3080.858 644 PR 3080.964 643 PR 3081.358 642 PR 3080.966 653 PR 3081.183 641 PR 3082.518 640 PR 3083.216 647 SP 3085.351 624 PR 3084.132 636 PR 3084.823 634 PR 3083.999 638 EJECAR 3083.914 637 PR 3084.524 629 SP 3084.886 536 PR 3085.874 635 PR 3085.563 633 PR 3085.700 632 PR 3085.853 577 PR 3085.980 576 PR 3085.362 631 PR 3085.524 630 PR 3085.202 579 PR 3085.959 578 PR 3083.782 639 PR 3093.300 571 PR 3093.058 570 PR 3093.104 569 PR 3091.935 568 PR 3094.533 572 PR 3088.250 575 SP 3102.340 573 EJECAR 3096.323 553 PR 3096.395 552 PR 3096.754 560 PR 3098.196 551 PR 3096.366 562 EJECAR 3095.889 557 PR 3096.388 556 SP 3101.147 561 SP 3097.615 623 SP 3097.060 622 SP 3096.542 574 PR 3077.700 695 PR 3077.990 661 PR 3077.485 727 PR 3077.609 694 EJEASF 3077.437 693 EJEASF 3077.408 692 STA 3077.682 580 PR 3076.151 736 PR 3076.444 733 PR 3076.390 731 PR 3076.257 740 PR 3076.370 739 PR 3075.817 735 PR 3076.508 730 PR 3076.514 688 PR 3077.159 737 PR 3076.975 734 PR 3077.023 732 EJEASF 3077.259 691 PR 3077.063 690 PR 3076.611 689 BD 3077.325 686 EJEASF 3077.338 685 POST 3077.276 684 PR 3077.484 664 PR 3077.228 738 PR 3077.335 687 STA 3077.254 581 PR 3075.622 742 PR 3075.282 741 EJEASF 3077.114 681 PR 3077.841 745 PR 3077.763 744 PR 3076.981 743 PR 3076.874 683 POST 3077.236 680 CERCO 3078.323 747 PR 3078.462 746 BD 3077.032 682 SQ 3077.235 679 BZ 3076.854 678 SQ 3076.747 677 BD 3076.686 676 EJEASF 3076.729 675 POST 3076.780 674 BD 3076.456 673 EJEASF 3076.514 672 POST 3076.347 671 PR 3079.611 662 PR 3079.838 660 PR 3079.833 659 PR 3079.820 663 SP 3083.698 627 SP 3083.329 628 PR 3079.729 666 PR 3079.666 665 PR 3079.569 668 PR 3079.569 667 PR 3079.818 670 PR 3079.572 669 PR 3078.671 709 PR 3078.153 723 PR 3077.117 722 PR 3077.784 721 PR 3077.658 719 PR 3078.068 718 PR 3078.365 717 PR 3077.730 716 PR 3078.578 711 PR 3076.921 699 PR 3078.074 698 PR 3078.198 697 EJECAR 3078.180 696 SP 3077.018 764 PR 3076.922 726 PR 3077.085 725 PR 3077.991 724 PR 3078.378 754 PR 3078.404 753 PR 3077.120 729 PR 3077.072 728 PR 3077.124 749 CERCO 3078.383 748 PR 3079.890 761 PR 3080.365 710 PR 3080.552 708 POST 3079.958 763 PR 3079.720 762 PR 3080.438 759 PR 3082.369 760 PR 3081.491 757 PR 3080.866 707 PR 3080.401 755 PR 3079.349 752 PR 3078.761 751 PR 3078.810 750 PR 3080.876 758 PR 3081.985 756 PR 3078.459 715 PR 3078.100 714 SP 3084.479 625 SP 3084.119 626 PR 3078.231 720 PR 3078.687 713 PR 3077.977 702 PR 3078.518 658 PR 3078.225 657 3080 3080 3085 3085 3085 3085 3090 3090 3095 3095 3095 3095 3100 3100 3100 3100 3105 3105 3110 3110 3115 3115 3120 3120 3125 3125 3130 3130 3135 3135 3140 3140 3145 3145 3150 3150 3155 3155 3160 3160 3165 3165 3170 3170 3175 3175 3180 3180 3180 3180 PI-0 PI-1 PI-2 PI-3 PI-4 PI-5 PI-6 PI-7 PI-8 PI-9 PI-10 PI-11 PI-12 PI-13 PI-14 PI-15 PI-16 PI-17 PI-18 PI-19 PI-20 PI-21 PI-22 PI-23 PI-24 PI-25 PI-26 PI-27 PI-28 PI-29 PI-30 PI-31 PI-32 PI-33 PI-34 PI-35 PI-36 PI-37 PI-38 PI-39 PI-40 PI-41 PI-42 PI-43 Km 0+000 0+100 0+200 0+300 0+400 0+500 0+600 0+700 0+800 0+900 Km 1+000 1+100.00 1+200.00 1+300.00 1+400.00 1+500.00 1+600.00 1+700.00 1+800.00 1+900.00 Km 2+000 2+100.00 2+200.00 2+300.00 2+400.00 Km 2+500 CARRETERA ANEXOS PIACA TUCTUMPAYA CARRETERA OMATE POCSI ANEXO LA HUICCHUNA PENDIENTE COTA SUB-RASANTE COTA TERRENO ALTURA CORTE ALTURA RELLENO ALINEAMIENTO KILOMETRAJE 3183.440 3183.764 3183.501 3183.182 3182.864 3182.545 3182.227 3181.965 3181.730 3181.493 3181.258 3181.023 3180.875 3181.158 3181.463 3181.782 3182.349 3182.916 3183.478 3183.644 3183.338 3182.988 3182.638 3182.286 3182.257 3182.604 3183.043 3182.236 3181.253 3179.859 3178.351 3176.552 3175.610 3174.266 3174.591 3173.188 3172.428 3171.858 3171.442 3171.153 3170.847 3170.505 3170.624 3170.613 3170.613 3170.715 3170.836 3170.912 3170.989 3171.090 3170.865 3170.000 3170.000 3180.000 3180.000 3190.000 3190.000 -0.117 +0.003 +0.031 +0.003 +0.000 +0.130 +0.000 +0.066 -0.000 -0.164 -0.132 +0.038 +0.050 -0.257 -0.021 +0.015 +0.144 +0.405 +0.154 +0.018 +0.030 +0.266 +0.030 -0.007 -0.059 -0.007 LCV = 0.000 PIV = 0+000 ELV = 3183.440 3183.440 LCV = 30.000 PIV = 0+020 ELV = 3183.764 3183.764 PCV = 0+005 ELV = 3183.521 PTV = 0+035 ELV = 3183.539 LCV = 60.000 PIV = 0+140 ELV = 3181.965 3181.965 PCV = 0+110 ELV = 3182.415 PTV = 0+170 ELV = 3181.638 LCV = 40.000 PIV = 0+240 ELV = 3180.875 3180.875 PCV = 0+220 ELV = 3181.093 PTV = 0+260 ELV = 3181.177 LCV = 40.000 PIV = 0+300 ELV = 3181.782 3181.782 PCV = 0+280 ELV = 3181.480 PTV = 0+320 ELV = 3182.348 LCV = 60.000 PIV = 0+368.920 ELV = 3183.734 3183.734 PCV = 0+338.920 ELV = 3182.884 PTV = 0+398.920 ELV = 3183.252 LCV = 40.000 PIV = 0+470.710 ELV = 3182.099 3182.099 PCV = 0+450.710 ELV = 3182.420 PTV = 0+490.710 ELV = 3182.480 LCV = 40.000 PIV = 0+524.410 ELV = 3183.123 3183.123 PCV = 0+504.410 ELV = 3182.742 PTV = 0+544.410 ELV = 3181.815 LCV = 100.000 PIV = 0+660.520 ELV = 3174.224 3174.224 PCV = 0+610.520 ELV = 3177.493 PTV = 0+710.520 ELV = 3172.608 LCV = 60.000 PIV = 0+780 ELV = 3170.362 3170.362 PCV = 0+750 ELV = 3171.332 PTV = 0+810 ELV = 3170.458 LCV = 60.000 PIV = 0+980 ELV = 3170.999 3170.999 PCV = 0+950 ELV = 3170.903 PI-Nº: 1 R: 100.000 PI-Nº: 2 R: 100.000 PI-Nº: 3 R: 100.000 PI-Nº: 4 R: 100.000 PI-Nº: 5 R: 100.000 PI-Nº: 6 R: 100.000 PI-Nº: 7 R: 100.000 3183.440 0.000 3183.647 0.117 3183.464 0.037 3183.164 0.018 3182.864 0.000 3182.565 0.020 3182.268 0.041 3181.996 0.031 3181.750 0.020 3181.529 0.036 3181.311 0.053 3181.093 0.070 3181.005 0.130 3181.177 0.019 3181.480 0.017 3181.848 0.066 3182.348 0.001 3182.914 0.002 3183.317 0.161 3183.424 0.220 3183.235 0.103 3182.914 0.074 3182.592 0.046 3182.309 0.023 3182.327 0.070 3182.658 0.054 3182.782 0.261 3182.083 0.153 3180.796 0.457 3179.488 0.371 3178.181 0.170 3176.888 0.336 3175.709 0.099 3174.663 0.397 3173.748 0.843 3172.966 0.222 3172.301 0.127 3171.655 0.203 3171.038 0.404 3170.628 0.525 3170.455 0.392 3170.489 0.016 3170.553 0.071 3170.617 0.004 3170.680 0.067 3170.744 0.029 3170.808 0.028 3170.871 0.041 3170.929 0.060 3170.940 0.150 3170.898 0.033 +1.620% en 20.000 m -1.499% en 120.000 m -1.090% en 100.000 m +1.512% en 60.000 m +2.832% en 68.920 m -1.606% en 101.791 m +1.907% en 53.698 m -6.538% en 136.112 m -3.232% en 119.479 m +0.318% en 200.000 m -0.473% en 290.006 m 0+000 0+100 0+200 0+300 0+400 0+500 0+600 0+700 0+800 0+900 1+000 PENDIENTE COTA SUB-RASANTE COTA TERRENO ALTURA CORTE ALTURA RELLENO ALINEAMIENTO KILOMETRAJE 3170.865 3170.741 3170.756 3170.562 3170.493 3170.610 3170.599 3170.424 3170.525 3170.401 3169.986 3169.911 3169.985 3169.613 3169.089 3168.035 3166.901 3165.628 3164.367 3163.227 3162.139 3161.095 3160.020 3158.886 3150.000 3150.000 3160.000 3160.000 3170.000 3170.000 -0.007 -0.178 -0.178 -0.000 PTV = 1+010 ELV = 3170.857 LCV = 60.000 PIV = 1+270.010 ELV = 3169.628 3169.628 PCV = 1+240.010 ELV = 3169.770 PTV = 1+300.010 ELV = 3167.883 3158.886 3157.587 3156.201 3154.936 3153.688 3152.389 3151.187 3150.213 3149.216 3148.065 3146.931 3145.887 3144.435 3142.864 3141.176 3139.488 3140.000 3140.000 3150.000 3150.000 3160.000 3160.000 -0.062 -0.339 -0.028 LCV = 60.000 PIV = 1+738 ELV = 3142.405 3142.405 PCV = 1+708 ELV = 3144.150 3139.488 3137.663 3135.760 3133.573 3131.291 3129.153 3127.119 3125.005 3122.752 3120.443 3118.083 3110.000 3110.000 3120.000 3120.000 3130.000 3130.000 -0.028 PTV = 1+768 ELV = 3139.104 3118.083 3115.960 3114.708 3110.000 3120.000 3130.000 +0.147 +0.019 LCV = 40.000 PIV = 1+985.240 ELV = 3115.202 3115.202 PCV = 1+965.240 ELV = 3117.403 PI-Nº: 8 R: 100.000 PI-Nº: 9 R: 100.000 PI-Nº: 10 R: 100.000 PI-Nº: 11 R: 100.000 PI-Nº: 12 R: 100.000 PI-Nº: 13 R: 100.000 PI-Nº: 14 R: 100.000 PI-Nº: 15 R: 100.000 PI-Nº: 16 R: 100.000 PI-Nº: 17 R: 100.000 PI-Nº: 18 R: 100.000 PI-Nº: 19 R: 100.000 PI-Nº: 20 R: 100.000 PI-Nº: 21 R: 100.000 PI-Nº: 22 R: 100.000 PI-Nº: 23 R: 100.000 PI-Nº: 24 R: 100.000 PI-Nº: 25 R: 100.000 PI-Nº: 26 R: 100.000 PI-Nº: 27 R: 100.000 PI-Nº: 28 R: 100.000 PI-Nº: 29 R: 100.000 PI-Nº: 30 R: 100.000 PI-Nº: 31 R: 60.000 3170.898 0.033 3170.810 0.069 3170.715 0.041 3170.621 0.059 3170.526 0.033 3170.432 0.178 3170.337 0.262 3170.242 0.182 3170.148 0.377 3170.053 0.348 3169.959 0.027 3169.864 0.047 3169.770 0.215 3169.497 0.116 3168.868 0.221 3167.883 0.152 3166.720 0.181 3165.556 0.072 3164.393 0.026 3163.230 0.003 3162.066 0.073 3160.903 0.192 3159.740 0.280 3158.576 0.310 3157.413 0.174 3156.249 0.048 3155.086 0.150 3153.923 0.235 3152.759 0.370 3151.596 0.409 3150.432 0.219 3149.269 0.053 3148.106 0.041 3146.942 0.011 3145.779 0.108 3144.616 0.181 3143.390 0.526 3141.846 0.670 3139.957 0.469 3137.784 0.121 3135.583 0.177 3133.383 0.190 3131.182 0.109 3128.982 0.171 3126.781 0.338 3124.581 0.424 3122.380 0.372 3120.179 0.264 3117.979 0.104 3115.926 0.034 3114.394 0.314 -0.473% en 290.006 m -5.817% en 467.992 m -11.003% en 247.243 m -5.599% en 54.680 m 1+000 1+100 1+200 1+300 1+400 1+500 1+600 1+700 1+800 1+900 2+000 PENDIENTE COTA SUB-RASANTE COTA TERRENO ALTURA CORTE ALTURA RELLENO ALINEAMIENTO KILOMETRAJE 3114.708 3113.692 3112.087 3110.109 3108.029 3105.865 3102.865 3100.122 3097.650 3090.000 3090.000 3100.000 3100.000 3110.000 3110.000 +0.019 -0.000 -0.305 +0.101 PTV = 2+005.240 ELV = 3114.082 LCV = 40.000 PIV = 2+039.920 ELV = 3112.140 3112.140 PCV = 2+019.920 ELV = 3113.260 PTV = 2+059.920 ELV = 3109.792 PCV = 2+150 ELV = 3099.217 3097.650 3096.229 3095.698 3095.172 3095.727 3096.355 3096.301 3096.322 3096.177 3094.947 3093.133 3090.619 3088.075 3085.512 3082.849 3080.440 3079.082 3070.000 3070.000 3080.000 3080.000 3090.000 3090.000 +0.101 +0.906 +0.101 -0.322 -0.164 +0.258 LCV = 60.000 PIV = 2+180 ELV = 3095.695 3095.695 PTV = 2+210 ELV = 3095.798 LCV = 30.000 PIV = 2+320 ELV = 3096.177 3096.177 PCV = 2+305 ELV = 3096.125 PTV = 2+335 ELV = 3094.939 LCV = 30.000 PIV = 2+360 ELV = 3092.876 3092.876 PCV = 2+345 ELV = 3094.114 PTV = 2+375 ELV = 3090.984 LCV = 30.000 PIV = 2+460 ELV = 3080.261 3080.261 PCV = 2+445 ELV = 3082.153 PTV = 2+475 ELV = 3079.403 3079.082 3077.972 3070.000 3080.000 3090.000 LCV = 0.000 PIV = 2+500 ELV = 3077.972 3077.972 PI-Nº: 32 R: 60.000 PI-Nº: 33 R: 60.000 PI-Nº: 34 R: 30.000 PI-Nº: 35 R: 100.000 PI-Nº: 36 R: 30.000 PI-Nº: 37 R: 80.000 PI-Nº: 38 R: 35.000 PI-Nº: 39 R: 80.000 PI-Nº: 40 R: 80.000 PI-Nº: 41 R: 40.000 PI-Nº: 42 R: 40.000 3114.394 0.314 3113.256 0.436 3111.826 0.261 3109.783 0.326 3107.435 0.594 3105.087 0.778 3102.739 0.126 3100.391 0.269 3098.144 0.494 3096.601 0.372 3095.865 0.167 3095.833 0.661 3095.901 0.174 3095.970 0.385 3096.039 0.262 3096.108 0.214 3095.855 0.322 3094.526 0.421 3092.712 0.421 3090.353 0.266 3087.830 0.245 3085.307 0.205 3082.784 0.065 3080.519 0.079 3079.116 0.034 3077.972 0.000 -5.599% en 54.680 m -11.740% en 140.079 m +0.344% en 140.000 m -8.253% en 40.000 m -12.615% en 100.000 m -5.723% en 39.999 m 2+000 2+100 2+200 2+300 2+400 2+500 245400E 245400E 245600E 245600E 245800E 245800E 246000E 246000E 246200E 246200E 246400E 246400E 246600E 246600E 246800E 246800E 247000E 247000E 247200E 247200E 247400E 247400E 247600E 247600E 247800E 247800E 8171200N 8171200N 8171400N 8171400N 8171600N 8171600N 8171800N 8171800N 8172000N 8172000N 8172200N 8172200N 8172400N 8172400N 8172600N 8172600N 0+000.00 CT=3183.44 CS=3183.44 AC=0.22 AR=0.04 0+020.00 CT=3183.76 CS=3183.65 AC=1.43 AR=0.00 0+040.00 CT=3183.50 CS=3183.46 AC=0.76 AR=0.00 0+060.00 CT=3183.18 CS=3183.16 AC=0.57 AR=0.00 0+080.00 CT=3182.86 CS=3182.86 AC=0.29 AR=0.03 0+100.00 CT=3182.55 CS=3182.57 AC=0.24 AR=0.09 0+120.00 CT=3182.23 CS=3182.27 AC=0.18 AR=0.18 0+140.00 CT=3181.97 CS=3182.00 AC=0.18 AR=0.14 0+160.00 CT=3181.73 CS=3181.75 AC=0.18 AR=0.10 0+180.00 CT=3181.49 CS=3181.53 AC=0.00 AR=0.20 0+200.00 CT=3181.26 CS=3181.31 AC=0.00 AR=0.29 0+220.00 CT=3181.02 CS=3181.09 AC=0.00 AR=0.37 0+240.00 CT=3180.88 CS=3181.01 AC=0.21 AR=0.50 0+260.00 CT=3181.16 CS=3181.18 AC=0.60 AR=0.02 0+280.00 CT=3181.46 CS=3181.48 AC=0.50 AR=0.01 0+300.00 CT=3181.78 CS=3181.85 AC=0.18 AR=0.21 0+320.00 CT=3182.35 CS=3182.35 AC=0.61 AR=0.00 0+340.00 CT=3182.92 CS=3182.91 AC=0.57 AR=0.00 0+360.00 CT=3183.48 CS=3183.32 AC=1.76 AR=0.00 0+380.00 CT=3183.64 CS=3183.42 AC=2.12 AR=0.00 0+400.00 CT=3183.34 CS=3183.24 AC=1.45 AR=0.00 0+420.00 CT=3182.99 CS=3182.91 AC=2.06 AR=0.00 0+440.00 CT=3182.64 CS=3182.59 AC=2.79 AR=0.00 0+460.00 CT=3182.29 CS=3182.31 AC=3.57 AR=0.07 0+480.00 CT=3182.26 CS=3182.33 AC=2.47 AR=0.10 0+500.00 CT=3182.60 CS=3182.66 AC=0.75 AR=0.07 0+520.00 CT=3183.04 CS=3182.78 AC=2.69 AR=0.00 0+540.00 CT=3182.24 CS=3182.08 AC=6.08 AR=0.00 0+560.00 CT=3181.25 CS=3180.80 AC=8.27 AR=0.00 0+580.00 CT=3179.86 CS=3179.49 AC=4.42 AR=0.00 0+600.00 CT=3178.35 CS=3178.18 AC=1.03 AR=0.41 0+620.00 CT=3176.55 CS=3176.89 AC=0.00 AR=1.71 0+640.00 CT=3175.61 CS=3175.71 AC=0.72 AR=0.60 0+660.00 CT=3174.27 CS=3174.66 AC=0.57 AR=1.17 0+680.00 CT=3174.59 CS=3173.75 AC=7.06 AR=0.00 0+700.00 CT=3173.19 CS=3172.97 AC=2.32 AR=0.00 0+720.00 CT=3172.43 CS=3172.30 AC=1.53 AR=0.00 0+740.00 CT=3171.86 CS=3171.66 AC=2.10 AR=0.00 0+760.00 CT=3171.44 CS=3171.04 AC=3.63 AR=0.00 0+780.00 CT=3171.15 CS=3170.63 AC=4.56 AR=0.00 0+800.00 CT=3170.85 CS=3170.45 AC=3.57 AR=0.00 0+820.00 CT=3170.51 CS=3170.49 AC=1.03 AR=0.00 0+840.00 CT=3170.62 CS=3170.55 AC=1.31 AR=0.00 0+860.00 CT=3170.61 CS=3170.62 AC=0.53 AR=0.08 0+880.00 CT=3170.61 CS=3170.68 AC=0.41 AR=0.37 0+900.00 CT=3170.72 CS=3170.74 AC=0.35 AR=0.11 0+920.00 CT=3170.84 CS=3170.81 AC=0.65 AR=0.00 0+940.00 CT=3170.91 CS=3170.87 AC=0.51 AR=0.02 0+960.00 CT=3170.99 CS=3170.93 AC=0.94 AR=0.00 0+980.00 CT=3171.09 CS=3170.94 AC=1.69 AR=0.00 1+000.00 CT=3170.87 CS=3170.90 AC=0.47 AR=0.05 1+020.00 CT=3170.74 CS=3170.81 AC=0.17 AR=0.20 1+040.00 CT=3170.76 CS=3170.72 AC=0.84 AR=0.00 1+060.00 CT=3170.56 CS=3170.62 AC=0.26 AR=0.22 1+080.00 CT=3170.49 CS=3170.53 AC=0.51 AR=0.15 1+100.00 CT=3170.61 CS=3170.43 AC=1.78 AR=0.00 1+120.00 CT=3170.60 CS=3170.34 AC=2.44 AR=0.00 1+140.00 CT=3170.42 CS=3170.24 AC=1.83 AR=0.01 1+160.00 CT=3170.53 CS=3170.15 AC=4.17 AR=0.00 1+180.00 CT=3170.40 CS=3170.05 AC=3.27 AR=0.00 1+200.00 CT=3169.99 CS=3169.96 AC=1.48 AR=0.14 1+220.00 CT=3169.91 CS=3169.86 AC=1.94 AR=0.54 1+240.00 CT=3169.99 CS=3169.77 AC=2.27 AR=0.00 1+260.00 CT=3169.61 CS=3169.50 AC=1.87 AR=0.00 1+280.00 CT=3169.09 CS=3168.87 AC=2.14 AR=0.00 1+300.00 CT=3168.03 CS=3167.88 AC=2.23 AR=0.00 1+320.00 CT=3166.90 CS=3166.72 AC=2.43 AR=0.00 1+340.00 CT=3165.63 CS=3165.56 AC=1.26 AR=0.10 1+360.00 CT=3164.37 CS=3164.39 AC=0.71 AR=0.20 1+380.00 CT=3163.23 CS=3163.23 AC=0.51 AR=0.21 1+400.00 CT=3162.14 CS=3162.07 AC=2.54 AR=0.00 1+420.00 CT=3161.10 CS=3160.90 AC=2.24 AR=0.00 1+440.00 CT=3160.02 CS=3159.74 AC=3.66 AR=0.00 1+460.00 CT=3158.89 CS=3158.58 AC=4.20 AR=0.00 1+480.00 CT=3157.59 CS=3157.41 AC=2.78 AR=0.00 1+500.00 CT=3156.20 CS=3156.25 AC=2.27 AR=0.02 1+520.00 CT=3154.94 CS=3155.09 AC=4.28 AR=0.12 1+540.00 CT=3153.69 CS=3153.92 AC=2.34 AR=0.30 1+560.00 CT=3152.39 CS=3152.76 AC=0.00 AR=1.40 1+580.00 CT=3151.19 CS=3151.60 AC=0.00 AR=1.81 1+600.00 CT=3150.21 CS=3150.43 AC=3.03 AR=0.47 1+620.00 CT=3149.22 CS=3149.27 AC=1.42 AR=0.02 1+640.00 CT=3148.07 CS=3148.11 AC=3.03 AR=0.01 1+660.00 CT=3146.93 CS=3146.94 AC=1.06 AR=0.06 1+680.00 CT=3145.89 CS=3145.78 AC=1.61 AR=0.00 1+700.00 CT=3144.43 CS=3144.62 AC=1.33 AR=0.56 1+720.00 CT=3142.86 CS=3143.39 AC=0.00 AR=2.12 1+740.00 CT=3141.18 CS=3141.85 AC=0.00 AR=2.95 1+760.00 CT=3139.49 CS=3139.96 AC=0.00 AR=2.27 1+780.00 CT=3137.66 CS=3137.78 AC=2.55 AR=0.18 1+800.00 CT=3135.76 CS=3135.58 AC=3.76 AR=0.00 1+820.00 CT=3133.57 CS=3133.38 AC=2.54 AR=0.00 1+840.00 CT=3131.29 CS=3131.18 AC=2.24 AR=0.00 1+860.00 CT=3129.15 CS=3128.98 AC=1.74 AR=0.14 1+880.00 CT=3127.12 CS=3126.78 AC=3.32 AR=0.00 1+900.00 CT=3125.01 CS=3124.58 AC=5.65 AR=0.00 1+920.00 CT=3122.75 CS=3122.38 AC=4.37 AR=0.00 1+940.00 CT=3120.44 CS=3120.18 AC=3.43 AR=0.00 1+960.00 CT=3118.08 CS=3117.98 AC=1.44 AR=0.00 1+980.00 CT=3115.96 CS=3115.93 AC=1.01 AR=0.00 2+000.00 CT=3114.71 CS=3114.39 AC=2.93 AR=0.00 2+020.00 CT=3113.69 CS=3113.26 AC=3.92 AR=0.00 2+040.00 CT=3112.09 CS=3111.83 AC=2.81 AR=0.00 2+060.00 CT=3110.11 CS=3109.78 AC=3.38 AR=0.00 2+080.00 CT=3108.03 CS=3107.43 AC=5.48 AR=0.00 2+100.00 CT=3105.87 CS=3105.09 AC=6.54 AR=0.00 2+120.00 CT=3102.87 CS=3102.74 AC=1.64 AR=0.00 2+140.00 CT=3100.12 CS=3100.39 AC=0.00 AR=1.31 2+160.00 CT=3097.65 CS=3098.14 AC=0.00 AR=2.71 2+180.00 CT=3096.23 CS=3096.60 AC=0.00 AR=2.29 2+200.00 CT=3095.70 CS=3095.86 AC=0.00 AR=1.18 2+220.00 CT=3095.17 CS=3095.83 AC=0.00 AR=3.92 2+240.00 CT=3095.73 CS=3095.90 AC=0.19 AR=0.90 2+260.00 CT=3096.36 CS=3095.97 AC=3.55 AR=0.00 2+280.00 CT=3096.30 CS=3096.04 AC=2.58 AR=0.00 2+300.00 CT=3096.32 CS=3096.11 AC=2.35 AR=0.00 2+320.00 CT=3096.18 CS=3095.86 AC=3.18 AR=0.00 2+340.00 CT=3094.95 CS=3094.53 AC=4.10 AR=0.00 2+360.00 CT=3093.13 CS=3092.71 AC=5.09 AR=0.00 2+380.00 CT=3090.62 CS=3090.35 AC=3.45 AR=0.00 2+400.00 CT=3088.08 CS=3087.83 AC=3.08 AR=0.00 2+420.00 CT=3085.51 CS=3085.31 AC=2.55 AR=0.00 2+440.00 CT=3082.85 CS=3082.78 AC=2.35 AR=0.00 2+460.00 CT=3080.44 CS=3080.52 AC=0.33 AR=0.27 2+480.00 CT=3079.08 CS=3079.12 AC=2.18 AR=0.28 2+500.00 CT=3077.97 CS=3077.97 AC=1.01 AR=0.00 \W8.1574; ALCANTARILLA \W8.4465; Nº 01 5 5 6.00 BASE GRANULAR ASFALTO EN FRIO DE 2" NIVEL DE SUBRAZANTE TERRENO NATURAL Escala: 1/100 ESTACIONAMIENTO 1.50 2.40 6.00 0.20 (VARIABLE) L P PISTA VEREDA VEREDA ESTACIONAMIENTO 1.50 2.40 6.00 0.20 L P PISTA VEREDA VEREDA 30.00 JARDIN 5 5 5 \A1;\W1.2;DETALLE DE ENTRADA Y SALIDA DE LA ALCANTARILLA \A1;\W1.2;PLANTA -ALCANTARILLA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 A A CORTE A - A B B 5 5 5 5 \A1;\W1.2;CORTE B - B 5 5 5 3080 3080 3085 3085 3085 3085 3090 3090 3095 3095 3095 3095 3100 3100 3100 3100 3105 3105 3110 3110 3115 3115 3120 3120 3125 3125 3130 3130 3135 3135 3140 3140 3145 3145 3150 3150 3155 3155 3160 3160 3165 3165 3170 3170 3175 3175 3180 3180 3180 3180 PI-0 PI-1 PI-2 PI-3 PI-4 PI-5 PI-6 PI-7 PI-8 PI-9 PI-10 PI-11 PI-12 PI-13 PI-14 PI-15 PI-16 PI-17 PI-18 PI-19 PI-20 PI-21 PI-22 PI-23 PI-24 PI-25 PI-26 PI-27 PI-28 PI-29 PI-30 PI-31 PI-32 PI-33 PI-34 PI-35 PI-36 PI-37 PI-38 PI-39 PI-40 PI-41 PI-42 PI-43 KM 0+000 0+100 0+200 0+300 0+400 0+500 0+600 0+700 0+800 0+900 KM 1+000 1+100.00 1+200.00 1+300.00 1+400.00 1+500.00 1+600.00 1+700.00 1+800.00 1+900.00 KM 2+000 2+100.00 2+200.00 2+300.00 2+400.00 KM 2+500 CARRETERA ANEXOS PIACA TUCTUMPAYA CARRETERA OMATE POCSI ANEXO LA HUICCHUNA 245400E 245400E 245600E 245600E 245800E 245800E 246000E 246000E 246200E 246200E 246400E 246400E 246600E 246600E 246800E 246800E 247000E 247000E 247200E 247200E 247400E 247400E 247600E 247600E 247800E 247800E 8171200N 8171200N 8171400N 8171400N 8171600N 8171600N 8171800N 8171800N 8172000N 8172000N 8172200N 8172200N 8172400N 8172400N 8172600N 8172600N HAY BUZONES AC - 1 AC - 2 AC - 3 AC - 4 AC - 5 AC - 6 5 HAY BUZONES AC - 1 AC - 2 AC - 3 AC - 4 AC - 5 AC - 6 5 5 5 NIVEL DE SUBRAZANTE ASFALTO EN FRIO DE 2" 5 BASE GRANULAR TERRENO NATURAL ALCANTARILLA 1: L = 6.98 8172400N PLANTA ORIGINAL PLANTA GIRADA 5 5 5 5 5 Variable \A1;\W1.1;SECCION TRANSVERSAL \A1;Empedrado asentado con mezcla de concreto \A1;Empedrado asentado con mezcla de concreto o piedra acomodada \A1;Alcantarilla y muro cabezal cuando sea necesario \A1;Perfil original del terreno \A1;\W1.10000x;CORTE A-A \A1;Escala 1:20 \A1;\W1.1;A \A1;\W1.1;A 0.05 0.50 0.50 \A1;Empedrado asentado con mezcla de concreto \A1;\W1.2;CUNETA REVESTIDA \A1;\W1.1;SECCION TRANSVERSAL \A1;Escala 1:20 VARIABLE ANCHO PROFUNDIDAD \A1;Empedrado asentado con mezcla de concreto \A1;\W1.2;CUNETA REVESTIDA \A1;\W1.1;SECCION TRANSVERSAL \A1;Escala 1:20 0.20 \A1;Perfil original del terreno 5 5 5 Variable \A1;\W1.2;ALIVIADERO DE CUNETA \A1;\W1.1;SECCION TRANSVERSAL \A1;Empedrado asentado con mezcla de concreto \A1;Empedrado asentado con mezcla de concreto o piedra acomodada \A1;Alcantarilla y muro cabezal cuando sea necesario \A1;Perfil original del terreno \A1;\W1.10000x;CORTE A-A \A1;Escala 1:20 \A1;\W1.1;A \A1;\W1.1;A \A1;\W1.1;\LALCANTARILLA \A1;Escala 1:100 \A1;\W1.2;ALIVIADERO DE CUNETA \A1;Escala 1:50 \A1;\W1.1;SECCION TIPICA \A1;\W1.2;SECCIONES TRANSVERSALES \A1;Escala 1:200 a d \A1;\W1.1;DIMENSIONES DE LAS CUNETAS \A1;\W1.1;REGION \A1;\W1.1;PROFUNDIDAD \A1;\W1.1;ANCHO \A1;d (m) \A1;a (m) \A1;Seca \A1;0.20 \A1;0.40 \A1;Lluviosa \A1;0.30 \A1;0.60 \A1;Muy Lluviosa \A1;0.50 \A1;1.00 \A1;1:1 Talud de corte \A1;\W1.1;EN CORTE \A1;Escala 1:20 \A1;\W1.1;REVESTIMIENTO DE PIEDRA \A1;Piedra grande o lajas \A1;Mortero de cemento \A1;Suelo natural compactado \A1;\W1.2;DISEÑO TIPICO DE CUNETAS \A1;\W1.1;ENTRADA DE LA CAIDA CON ENSANCHE 0+000.00 CT=3183.44 CS=3183.44 AC=0.22 AR=0.04 0+020.00 CT=3183.76 CS=3183.65 AC=1.43 AR=0.00 0+040.00 CT=3183.50 CS=3183.46 AC=0.76 AR=0.00 0+060.00 CT=3183.18 CS=3183.16 AC=0.57 AR=0.00 0+080.00 CT=3182.86 CS=3182.86 AC=0.29 AR=0.03 0+100.00 CT=3182.55 CS=3182.57 AC=0.24 AR=0.09 0+120.00 CT=3182.23 CS=3182.27 AC=0.18 AR=0.18 0+140.00 CT=3181.97 CS=3182.00 AC=0.18 AR=0.14 0+160.00 CT=3181.73 CS=3181.75 AC=0.18 AR=0.10 0+180.00 CT=3181.49 CS=3181.53 AC=0.00 AR=0.20 0+200.00 CT=3181.26 CS=3181.31 AC=0.00 AR=0.29 0+220.00 CT=3181.02 CS=3181.09 AC=0.00 AR=0.37 0+240.00 CT=3180.88 CS=3181.01 AC=0.21 AR=0.50 0+260.00 CT=3181.16 CS=3181.18 AC=0.60 AR=0.02 0+280.00 CT=3181.46 CS=3181.48 AC=0.50 AR=0.01 0+300.00 CT=3181.78 CS=3181.85 AC=0.18 AR=0.21 0+320.00 CT=3182.35 CS=3182.35 AC=0.61 AR=0.00 0+340.00 CT=3182.92 CS=3182.91 AC=0.57 AR=0.00 0+360.00 CT=3183.48 CS=3183.32 AC=1.76 AR=0.00 0+380.00 CT=3183.64 CS=3183.42 AC=2.12 AR=0.00 0+400.00 CT=3183.34 CS=3183.24 AC=1.45 AR=0.00 0+420.00 CT=3182.99 CS=3182.91 AC=2.06 AR=0.00 0+440.00 CT=3182.64 CS=3182.59 AC=2.79 AR=0.00 0+460.00 CT=3182.29 CS=3182.31 AC=3.57 AR=0.07 0+480.00 CT=3182.26 CS=3182.33 AC=2.47 AR=0.10 0+500.00 CT=3182.60 CS=3182.66 AC=0.75 AR=0.07 0+520.00 CT=3183.04 CS=3182.78 AC=2.69 AR=0.00 0+540.00 CT=3182.24 CS=3182.08 AC=6.08 AR=0.00 0+560.00 CT=3181.25 CS=3180.80 AC=8.27 AR=0.00 0+580.00 CT=3179.86 CS=3179.49 AC=4.42 AR=0.00 0+600.00 CT=3178.35 CS=3178.18 AC=1.03 AR=0.41 0+620.00 CT=3176.55 CS=3176.89 AC=0.00 AR=1.71 0+640.00 CT=3175.61 CS=3175.71 AC=0.72 AR=0.60 0+660.00 CT=3174.27 CS=3174.66 AC=0.57 AR=1.17 0+680.00 CT=3174.59 CS=3173.75 AC=7.06 AR=0.00 0+700.00 CT=3173.19 CS=3172.97 AC=2.32 AR=0.00 0+720.00 CT=3172.43 CS=3172.30 AC=1.53 AR=0.00 0+740.00 CT=3171.86 CS=3171.66 AC=2.10 AR=0.00 0+760.00 CT=3171.44 CS=3171.04 AC=3.63 AR=0.00 0+780.00 CT=3171.15 CS=3170.63 AC=4.56 AR=0.00 0+800.00 CT=3170.85 CS=3170.45 AC=3.57 AR=0.00 0+820.00 CT=3170.51 CS=3170.49 AC=1.03 AR=0.00 0+840.00 CT=3170.62 CS=3170.55 AC=1.31 AR=0.00 0+860.00 CT=3170.61 CS=3170.62 AC=0.53 AR=0.08 0+880.00 CT=3170.61 CS=3170.68 AC=0.41 AR=0.37 0+900.00 CT=3170.72 CS=3170.74 AC=0.35 AR=0.11 0+920.00 CT=3170.84 CS=3170.81 AC=0.65 AR=0.00 0+940.00 CT=3170.91 CS=3170.87 AC=0.51 AR=0.02 0+960.00 CT=3170.99 CS=3170.93 AC=0.94 AR=0.00 0+980.00 CT=3171.09 CS=3170.94 AC=1.69 AR=0.00 1+000.00 CT=3170.87 CS=3170.90 AC=0.47 AR=0.05 1+020.00 CT=3170.74 CS=3170.81 AC=0.17 AR=0.20 1+040.00 CT=3170.76 CS=3170.72 AC=0.84 AR=0.00 1+060.00 CT=3170.56 CS=3170.62 AC=0.26 AR=0.22 1+080.00 CT=3170.49 CS=3170.53 AC=0.51 AR=0.15 1+100.00 CT=3170.61 CS=3170.43 AC=1.78 AR=0.00 1+120.00 CT=3170.60 CS=3170.34 AC=2.44 AR=0.00 1+140.00 CT=3170.42 CS=3170.24 AC=1.83 AR=0.01 1+160.00 CT=3170.53 CS=3170.15 AC=4.17 AR=0.00 1+180.00 CT=3170.40 CS=3170.05 AC=3.27 AR=0.00 1+200.00 CT=3169.99 CS=3169.96 AC=1.48 AR=0.14 1+220.00 CT=3169.91 CS=3169.86 AC=1.94 AR=0.54 1+240.00 CT=3169.99 CS=3169.77 AC=2.27 AR=0.00 1+260.00 CT=3169.61 CS=3169.50 AC=1.87 AR=0.00 1+280.00 CT=3169.09 CS=3168.87 AC=2.14 AR=0.00 1+300.00 CT=3168.03 CS=3167.88 AC=2.23 AR=0.00 1+320.00 CT=3166.90 CS=3166.72 AC=2.43 AR=0.00 1+340.00 CT=3165.63 CS=3165.56 AC=1.26 AR=0.10 1+360.00 CT=3164.37 CS=3164.39 AC=0.71 AR=0.20 1+380.00 CT=3163.23 CS=3163.23 AC=0.51 AR=0.21 1+400.00 CT=3162.14 CS=3162.07 AC=2.54 AR=0.00 1+420.00 CT=3161.10 CS=3160.90 AC=2.24 AR=0.00 1+440.00 CT=3160.02 CS=3159.74 AC=3.66 AR=0.00 1+460.00 CT=3158.89 CS=3158.58 AC=4.20 AR=0.00 1+480.00 CT=3157.59 CS=3157.41 AC=2.78 AR=0.00 1+500.00 CT=3156.20 CS=3156.25 AC=2.27 AR=0.02 1+520.00 CT=3154.94 CS=3155.09 AC=4.28 AR=0.12 1+540.00 CT=3153.69 CS=3153.92 AC=2.34 AR=0.30 1+560.00 CT=3152.39 CS=3152.76 AC=0.00 AR=1.40 1+580.00 CT=3151.19 CS=3151.60 AC=0.00 AR=1.81 1+600.00 CT=3150.21 CS=3150.43 AC=3.03 AR=0.47 1+620.00 CT=3149.22 CS=3149.27 AC=1.42 AR=0.02 1+640.00 CT=3148.07 CS=3148.11 AC=3.03 AR=0.01 1+660.00 CT=3146.93 CS=3146.94 AC=1.06 AR=0.06 1+680.00 CT=3145.89 CS=3145.78 AC=1.61 AR=0.00 1+700.00 CT=3144.43 CS=3144.62 AC=1.33 AR=0.56 1+720.00 CT=3142.86 CS=3143.39 AC=0.00 AR=2.12 1+740.00 CT=3141.18 CS=3141.85 AC=0.00 AR=2.95 1+760.00 CT=3139.49 CS=3139.96 AC=0.00 AR=2.27 1+780.00 CT=3137.66 CS=3137.78 AC=2.55 AR=0.18 1+800.00 CT=3135.76 CS=3135.58 AC=3.76 AR=0.00 1+820.00 CT=3133.57 CS=3133.38 AC=2.54 AR=0.00 1+840.00 CT=3131.29 CS=3131.18 AC=2.24 AR=0.00 1+860.00 CT=3129.15 CS=3128.98 AC=1.74 AR=0.14 1+880.00 CT=3127.12 CS=3126.78 AC=3.32 AR=0.00 1+900.00 CT=3125.01 CS=3124.58 AC=5.65 AR=0.00 1+920.00 CT=3122.75 CS=3122.38 AC=4.37 AR=0.00 1+940.00 CT=3120.44 CS=3120.18 AC=3.43 AR=0.00 1+960.00 CT=3118.08 CS=3117.98 AC=1.44 AR=0.00 1+980.00 CT=3115.96 CS=3115.93 AC=1.01 AR=0.00 2+000.00 CT=3114.71 CS=3114.39 AC=2.93 AR=0.00 2+020.00 CT=3113.69 CS=3113.26 AC=3.92 AR=0.00 2+040.00 CT=3112.09 CS=3111.83 AC=2.81 AR=0.00 2+060.00 CT=3110.11 CS=3109.78 AC=3.38 AR=0.00 2+080.00 CT=3108.03 CS=3107.43 AC=5.48 AR=0.00 2+100.00 CT=3105.87 CS=3105.09 AC=6.54 AR=0.00 2+120.00 CT=3102.87 CS=3102.74 AC=1.64 AR=0.00 2+140.00 CT=3100.12 CS=3100.39 AC=0.00 AR=1.31 2+160.00 CT=3097.65 CS=3098.14 AC=0.00 AR=2.71 2+180.00 CT=3096.23 CS=3096.60 AC=0.00 AR=2.29 2+200.00 CT=3095.70 CS=3095.86 AC=0.00 AR=1.18 2+220.00 CT=3095.17 CS=3095.83 AC=0.00 AR=3.92 2+240.00 CT=3095.73 CS=3095.90 AC=0.19 AR=0.90 2+260.00 CT=3096.36 CS=3095.97 AC=3.55 AR=0.00 2+280.00 CT=3096.30 CS=3096.04 AC=2.58 AR=0.00 2+300.00 CT=3096.32 CS=3096.11 AC=2.35 AR=0.00 2+320.00 CT=3096.18 CS=3095.86 AC=3.18 AR=0.00 2+340.00 CT=3094.95 CS=3094.53 AC=4.10 AR=0.00 2+360.00 CT=3093.13 CS=3092.71 AC=5.09 AR=0.00 2+380.00 CT=3090.62 CS=3090.35 AC=3.45 AR=0.00 2+400.00 CT=3088.08 CS=3087.83 AC=3.08 AR=0.00 2+420.00 CT=3085.51 CS=3085.31 AC=2.55 AR=0.00 2+440.00 CT=3082.85 CS=3082.78 AC=2.35 AR=0.00 2+460.00 CT=3080.44 CS=3080.52 AC=0.33 AR=0.27 2+480.00 CT=3079.08 CS=3079.12 AC=2.18 AR=0.28 2+500.00 CT=3077.97 CS=3077.97 AC=1.01 AR=0.00 \A1;\W1.2;SECCIONES TRANSVERSALES \A1;Escala 1:200 5 \A1;Donde sea necesario en obra \W8.1574; ALCANTARILLA \W8.4465; Nº 01 AC-05 AC-04 AC-03 AC-01 AC-02 AC-06 COMPACTADO A-1

Language	Spanish
Drawing Type	Full Project
Category	Roads, Bridges and Dams
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Parking
Tags	autocad, details, DWG, full, HIGHWAY, pavement, PLANES, Project, Road, route, sections, tracts
