Roof Garden Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

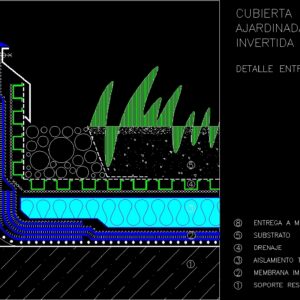

detail drain, resistant support earrings, thermal isolation, waterproofing membrane, bowl drain, morrion, substrate, sewer system, walkable roof, inverted, Delivery detail wall, substrate, delivery wall with profile, waterproofing membrane, thermal isolation, sewer system, resistant support earrings, walkable roof, inverted, structural joint detail, resistant support earrings, thermal isolation, waterproofing membrane, substrate, sewer system, walkable roof, inverted

Raw text data extracted from CAD file:

DETALLE DESAGUE 1 SOPORTE RESISTENTE Y PENDIENTES 2 3 4 AISLAMIENTO TERMICO 5 MEMBRANA IMPERMEABILIZANTE 6 CAZOLETA DESAGUE MORRION 7 AJARDINADA-ECOLOGICA SUBSTRATO DRENAJE CUBIERTA TRANSITABLE INVERTIDA 3 1 4 5 6 7 2 DETALLE ENTREGA A MURO 8 AJARDINADA-ECOLOGICA 5 4 SUBSTRATO ENTREGA A MURO CON PERFIL 8 1 MEMBRANA IMPERMEABILIZANTE 5 AISLAMIENTO TERMICO DRENAJE 4 3 2 SOPORTE RESISTENTE Y PENDIENTES 1 CUBIERTA TRANSITABLE INVERTIDA 2 3 DETALLE JUNTA ESTRUCTURAL 1 SOPORTE RESISTENTE Y PENDIENTES 2 3 4 AISLAMIENTO TERMICO 5 MEMBRANA IMPERMEABILIZANTE AJARDINADA-ECOLOGICA SUBSTRATO DRENAJE 5 4 1 3 CUBIERTA TRANSITABLE INVERTIDA 2

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Garden / Park
