Roof Structure In Metallic Carpentry DWG Block for AutoCAD

Roof Structure In Metallic Carpentry DWG Block for AutoCAD

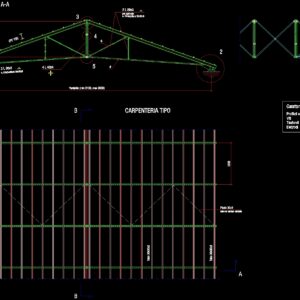

Structure of roof in metallic carpentry

Drawing labels, details, and other text information extracted from the CAD file (Translated from Italian):

Variable max, Variable max, ipe, For each auction, n. padding, tube, step, section, Only in the middle field, dish, section, Only in the middle field, dish, tube, Type carpentry, Variable max, Variable max, Material characteristics, Sheet metal profiles, screws, bolts, class, electrodes

Raw text data extracted from CAD file:

1500 6 8 Variabile (min 8100, max 9000) 220 300 Variabile (min 1400, max 1600) 1 2 3 4 5 IPE 100 2 L 30x3 2 L 20x3 4 L 40x4 per ogni asta n. 2 imbottiture 50x30x6 n. 3 imbottiture 50x40x6 Tubo 30x30x2 passo < 400 SEZIONE A-A L 50x5 solo nel campo centrale Piatto 30x3 SEZIONE B-B solo nel campo centrale Piatto 30x3 Tubo 30x30x2 Tubo 30x30x2 CARPENTERIA TIPO 5 A A B B 5 5 Variabile (min 8100, max 9000) 220 5 Variabile (min 1400, max 1600) Caratteristiche dei materiali Profilati e lamiere Viti Tirafondi classe 6.6 classe 5.6 Fe 360 B Elettrodi E 44 B

Language	N/A
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, carpentry, DWG, metallic, roof, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure, structure en acier
