Rural Sanitary Bathroom DWG Section for AutoCAD

Rural Sanitary Bathroom DWG Section for AutoCAD

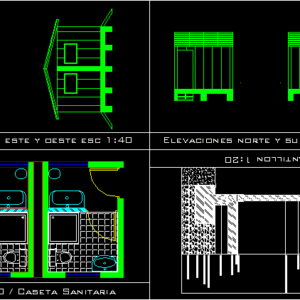

Rural Sanitary Bathroom – Plants – Sections – Elevations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Zinc sheet, Impermeable plaque, Triangular metal frame, Impermeability plate, Metal beam, Laminated wood board mm, Panel of h, Center of porystyrene exp., tile, mortar, Radier h.a., Lock, Impermeability plate, Foundation h.a., Compacted ground, Consolidated land, Zinc sheet, Impermeability plate mm, Triangular metal frame, Fixing bolt, Wood profile, Double girder, Fixing bolt, mortar, profile, Fixing bolt, Fixing plate, Laminated wood board, Metal profile, H. A panel, Poriextireno exp plate, Detail fixing on deck, Plant health house, East east east, North south south, Escantillon cut

Raw text data extracted from CAD file:

Plancha de Zinc Placa impermieabilizante 1mm Marco metalico triangular Placa impermiabilizante 1mm Viga metalica "doble t" 0.1m Placa madera laminada 0.2 mm Panel de h.a centro de poriestireno exp. 60mm Baldosa 0.1mm Mortero Radier h.a. 0.25m Enfierradura ø12 Placa impermiabilizante 20mm Fundacion H.A. 0.5m H 20 Terreno compactado Terreno Consolidado Plancha de Zinc Placa impermiabilizante 20 mm marco metalico triangular Perno de fijacion Perfil de madera Viga doble t 0.1m Perno de fijacion Mortero Perfil L Perno de fijacion Placa de fijacion Placa de madera laminada Perfil metalico C Panel de H.A. Placa de poriextireno exp 60mm Detalle 1:5 / fijacion en cubierta Planta 1:20 / Caseta Sanitaria Elevaciones este y oeste esc 1:40 Elevaciones norte y sur esc 1:40 Corte Escantillon 1:20

Language	Spanish
Drawing Type	Section
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	autocad, bad, bathroom, casa de banho, chuveiro, DWG, elevations, lavabo, lavatório, plants, rural, salle de bains, Sanitary, section, sections, toilet, waschbecken, washbasin, WC
