Pre manufactured septic grave

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

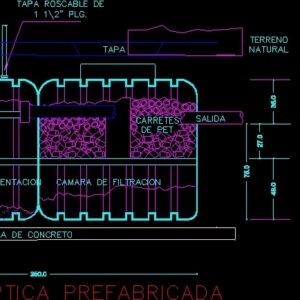

stone layer, gravel layer, dust coat, elbow, Well of, absorption, screw cap of plg., top, departure, reels, of pet, concrete template, filtration chamber, reinforced concrete slab cm, natural terrain, entry, sedimentation chamber, tube of, top, ventilation, septic tank prefabricated, natural terrain

Raw text data extracted from CAD file:

\A1;50.0 \A1;30.0 \A1;30.0 \A1;250.0 \A1;100.0 \A1;75.0 \A1;49.0 \A1;27.0 \A1;35.0 \A1;100.0 \A1;300.0 300.0 100.0 100.0 CAPA DE PIEDRA CAPA DE GRAVA CAPA DE POLVO CODO 90° d 4" POZO DE ABSORCION TAPA ROSCABLE DE 1 1\\2" PLG. TAPA 75.0 49.0 SALIDA CARRETES DE PET 27.0 35.0 PLANTILLA DE CONCRETO CAMARA DE FILTRACION LOSA DE CONCRETO ARMADO DE 10 CM TERRENO NATURAL ENTRADA 50.0 30.0 30.0 CAMARA DE SEDIMENTACION 250.0 TUBO DE TAPA VENTILACION FOSA SEPTICA PREFABRICADA TERRENO NATURAL

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
