Servicentro DWG Full Project for AutoCAD

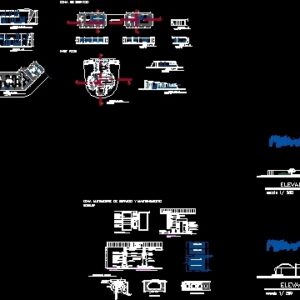

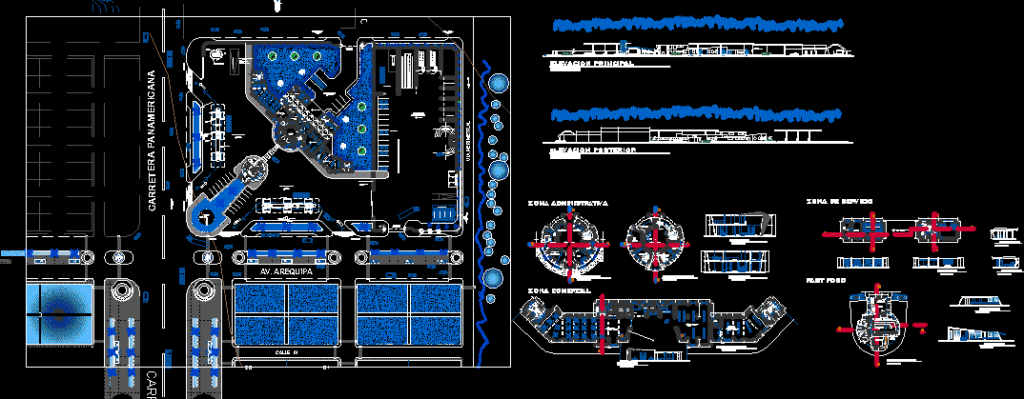

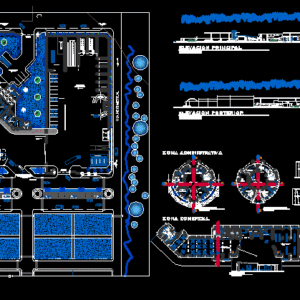

Equipment for Servicentro Uban, located in the district of Arequipa Huacapuy, the work has an urban intervention in that district, the overall gas station planimetry, also the development of general elevations and development of areas that make up the project : ADMINISTRATIVE AREA, COMMERCIAL AREA (restaurant, mini market) SERVICES (Lubricentro) AND FAST FOOD.
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
grease separator, laundry, lubrication and brakes, electronic balancing, suspension and enllante, computerized alignment, unleaded gasoline, diesel gasoline, sunterraneos tanks, income of services, deposit, dispensers, exit, income, discharge glp, glp, luminous sign of prices, ss. H H. males, road, av. arequipa, traces painted with paint, yellow traffic, monitoring well, air, water, container for, liquid waste, solid waste, projection of canoupy, yard maneuvers, asphalt floor, estar – tv, npt, living room, kitchen, H.H. H H. checkers, machine room, control, loading and unloading, entry to Lubricentro, Pan-American Highway, perimeter road, wall security notices, – no smoking, – prohibited street vendors, – prohibited from making open fire, – parking prohibited, painted in wall, unjbg – faculty of architecture, urbanism and arts, – urban sector -, camana – huacapuy, general planimetry, automotive service, deposit, management, accounting, ice cream, secretary, tank cut, tank pit, luminous sign, distance between the tank glp, to the boundary of the property, protection against bumper, sardinel, fence with metal mesh, tank buried for glp, tank pit lpg, container, brine, container, direct, mouth for, edge of, gauging, excavation, mouth, distribution, filling, siphoning, venting, leak detection, filler mouth, inventory control, mouth of the system, attention and information, internet, booth, boardroom, ss.hh., hall, lobby, anticorrosive and in paint enamel, island defense finished in the background, matte yellow traffic, removable tube in wire, natural color stainless steel, or pdv messages, shelving for exhibition, pdv products, stainless steel sections, advertising space, level, paving to, valance for pdv identification, structural column, island roof, machimbrado cover in, red pdv color, stainless steel frame, faces in reinforced acrylic, aluminum border, in translucent white acrylic, illuminated background advertising, gas pump , or similar, gray lead color, clean work at the mouth of a brush, concrete floor finished island, element for placement of the peak, color red self-adhesive vinyl, natural color with tilde pdv, front covers stainless steel, fuel supply, output hose for, column lining, painted in blue PVD enamel, screen in smooth steelox series m, with lock, for utensils, display section, fire, swing door, in transparent acrylic, space for fire extinguisher, pdv products , stainless steel sheets, stainless steel sheet, white acrylic background, furniture finish, stainless steel sheets, natural color, cut number, vinyl-self-adhesive on top zero stainless steel, swing door for, island defense, roof structural column, movable aluminum frame, signage according to regulations, on the side cover of the pump :, do not smoke, danger turn off the engine., of islands, island frame, steel stainless, side cover of the jet, finished floor of the island, joint between bodies, sheets in, do not smoke, turn off the engine, danger, of the furniture in, height, maximum, maximum height, in lateral face for:, centered between bands white, island defense, sika floor epoxy paint, column cover, lubricant display cabinet, display cabinet, valance projection, includes quartz or silica layer, for anti-slip finish, parking area, sika or similar color yellow, demarcation post, plant island pdv., main view, d. ladies, d. males, dining room service, kitchen, machine room, ss.hh. ladies, ss.hh. males, side view, indicated, cut – elevation, development modules, details, serv. automotive, i.e.i., local community, children’s garden, mini library, health post, police post, local market, local park, green area, area for urban expansion, land eriasos, parking, Pan-American, a museum site, av. camana, av. the vault, av. huacapuy, av. the camana river
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Full Project |
| Category | Gas & Service Stations |
| Additional Screenshots |
   |
| File Type | dwg |
| Materials | Aluminum, Concrete, Steel, Other |
| Measurement Units | Metric |
| Footprint Area | |
| Building Features | Garden / Park, Deck / Patio, Parking |
| Tags | arequipa, autocad, dispenser, district, DWG, equipment, full, intervention, located, Project, service, service station, Station, urban, work |
