Setting Triple Effect DWG Detail for AutoCAD

Setting Triple Effect DWG Detail for AutoCAD

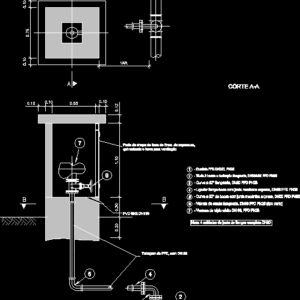

Detail of a Framework for Triple Effect

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

PVC, Com pipe, Triple suction cup suction df ffd, Ffd wedge valve, Curve of mouths with mechanical seal ffd, Connector with mechanical seal ffd, Ffd, Curve ffd, court, Ffd conduct, Galvanized steel sheet door for ventilation holes, Note: complete flange joint units, Var.

Raw text data extracted from CAD file:

\A1;0.10 \A1;0.10 \A1;0.65 \A1;0.10 \A1;0.10 \A1;0.80 \A1;0.10 \A1;VAR. \A1;0.10 \A1;0.75 \A1;0.30 \A1;0.30 \A1;0.10 \A1;0.12 \A1;1.10 PVC SN2 DN110 5 5 2 3 5 6 7 Tubagem de FFD, com DN 60 5 5 4 - Ventosa de triplo efeito DN 60, FFD PN25 - Válvula de cunha flangeada, DN60 FFD PN25 (tipo curto) - Curva a 90° de bocas com junta mecânica express, DN60 FFD PN25 - Ligador flange-boca com junta mecânica express, DN60 FFD PN25 - Tê de 2 bocas e derivação flangeada, DN200/60 FFD PN25 - Curva a 90° flangeada, DN60 FFD PN25 7 6 5 4 3 2 1 5 5 5 B B CORTE A-A CORTE B-B A A - Conduta FFD DN200, PN25 1 Porta de chapa de ferro de 5mm de espessura, galvanizada e furos para ventilação Nota: 4 unidades de junta de flanges completa DN60 VAR. 5 5 5 5 5 5 5

Language	Portuguese
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, DWG, einrichtungen, facilities, framework, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, setting, triple, wasser bestimmung, water
