Sewage Nitrification Bed DWG Block for AutoCAD

Sewage Nitrification Bed DWG Block for AutoCAD

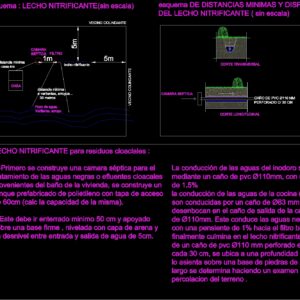

SEWAGE TREATMENT – – DISPOSITION AND PLACEMENT SCHEMES NITRIFICATION BED, USED TO PREVENT POLLUTION OF UNDERGROUND WATER NAPAS AND TO AVOID INFECTIOUS DISEASE TRANSMISSION.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cross-section, Longitudinal cut, Septic chamber, home, Creek well, Septic chamber, filter, Neighboring neighbor, Neighboring neighbor, Nitrifying bed, Minimum distance home, Minimum distance streams … meters, Bed layout, Minimum distance arrangement nitrifying bed layout without, Nitrifying bed for cloacal waste is built a septic tank for the treatment of sewage effluent from the bath of the building is a prefabricated tank of polyethylene with access cap of the capacity of the must be buried minimum cm supported on a firm base Level with layer of sand an unevenness between inlet water outlet of, The conduction of the toilet water is done by a pipe of pvc with a slope of the conduction of the waters of the kitchen are driven by a pipe of mm disengage in the outlet pipe of the septic chamber of this conducts the black waters gray With a gauge of towards the biological filter that finally culminates in the nitrifying bed consisting of a pipe of pvc mm drilled in the base each is located a depth of cm is set on a stones basis of its length is determined by doing a test Percolation of the ground, stream, Pvc pipe perforated mm

Raw text data extracted from CAD file:

\A1;1m \A1;5m \A1;5m CORTE TRANSVERSAL CORTE LONGITUDINAL CAMARA SEPTICA CASA Pozo de agua, Vertiente, arroyo CAMARA SEPTICA FILTRO VECINO COLINDANTE 1m VECINO COLINDANTE 5m lecho nitrificante distancia minima a casa 4m distancia minima a vertientes, arroyos... 30 metros 5m esquema : LECHO NITRIFICANTE(sin escala) esquema DE DISTANCIAS MINIMAS Y DISPOSICION DEL LECHO NITRIFICANTE ( sin escala) LECHO NITRIFICANTE para residuos cloaclales : 1 -Primero se construye una camara séptica para el tratamiento de las aguas negras o efluentes cloacales provenientes del baño de la vivienda, se construye un tanque prefabricado de polietileno con tapa de acceso de 60cm (calc la capacidad de la misma). 2-Este debe ir enterrado minimo 50 cm y apoyado sobre una base firme , nivelada con capa de arena y un desnivel entre entrada y salida de agua de 5cm. La conducción de las aguas del inodoro se realiza mediante un caño de pvc d110mm, con una pendiente de 1.5% la conducción de las aguas de la cocina (aguas grises) son conducidas por un caño de d63 mm y desenbocan en el caño de salida de la camara septica de d110mm. Este conduce las aguas negras y grises con una pensiente de 1% hacia el filtro biologico que finalmente culmina en el lecho nitrificante , que consta de un caño de pvc d110 mm perforado en la base cada 30 cm, se ubica a una profundidad de 40 cm y se lo asienta sobre una base de piedras de 2 a 10cm . Su largo se determina haciendo un examen de percolacion del terreno . ARROYO CAÑO DE PVC d110 MM PERFORADO C/ 30 CM

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, bed, block, disposition, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, placement, pollution, prevent, provision, schemes, sewage, treatment, underground, urban infrastructure, wasser bestimmung, water
