Sewerage DWG Block for AutoCAD

Sewerage DWG Block for AutoCAD

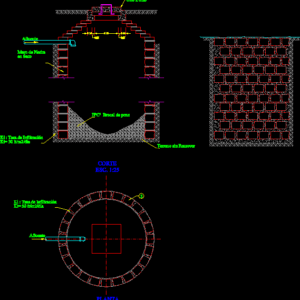

Sewage soakaway

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Inspection cap, tributary, stone wall, dry, Unmounted terrain, Cut esc., tributary, Plant esc., Ki rate of infiltration, Ki rate of infiltration, Hr

Raw text data extracted from CAD file:

Tapa de Inspección 0.60 x 0.60 Afluente Muro de Piedra en Seco 5 5 Terreno sin Remover CORTE ESC. 1:25 0.4000000001396984 5 5 Afluente PLANTA ESC. 1:25 Ki : Tasa de Infiltración Ki= 30 lt/m2/día 3 Ki : Tasa de Infiltración Ki= 30 lt/m2/día 5 5 0.5 5 5 HºCº Brocal de pozo \A1;0.10 \A1;0.05 \A1;0.50 \A1;0.05 \A1;0.10 \A1;H 4.00 \A1;D 2.00 \A1;0.40 \A1;0.10 \A1;0.10
