Sleeping For Pipes DWG Block for AutoCAD

Sleeping For Pipes DWG Block for AutoCAD

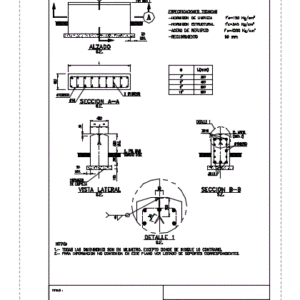

Sleeping for horizontal lines uncharged anchor employed to support large diameter pipes.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

min., max., min., Notes:, see note, min., max., min., he. pto. low, ground exist., he. support for, raised, HE., section, HE., side view, HE., section, HE., concrete, cleaning, all dimensions are in except where indicated otherwise., for information not contained in this map see list of corresponding supports., detail, HE., cleaning, structural, of reinforcement, Technical specifications, sleeper for unladen horizontal anchor lines, civil standard, typical, title, plan no., classif, revis., sheet

Raw text data extracted from CAD file:

\A1;L \A1;50 MIN. \A1;L \A1;400 \A1;\W0.7;400 \A1;= \A1;= \A1;30 \A1;500 MAX. \A1;300 \A1;100 \A1;50 MIN. \A1;50 \A1;50 \A1;250 \W0.65;Ø L(mm) 4" 300 6" 400 8" 500 10" 500 NOTAS: B A L VER NOTA 1 50 MIN. L 400 H Ø10@200 Ø10@200 Ø16 \W0.7;400 = = 30 500 MAX. 300 100 50 MIN. EL. PTO. BAJO TERRENO EXIST. EL. APOYO (NOTA 2) Ø10@200 3Ø16 3Ø16 ALZADO S.E. SECCION A-A S.E. VISTA LATERAL S.E. SECCION B-B S.E. HORMIGON DE LIMPIEZA 1.- TODAS LAS DIMENSIONES SON EN MILIMETRO, EXCEPTO DONDE SE INDIQUE LO CONTRARIO. 2.- PARA INFORMACION NO CONTENIDA EN ESTE PLANO VER LISTADO DE SOPORTES CORRESPONDIENTES. DETALLE 1 DETALLE 1 S.E. 50 50 250 6 -HORMIGON DE LIMPIEZA f`c=150 Kg/cm² -HORMIGON ESTRUCTURAL f`c=245 Kg/cm² -ACERO DE REFUERZO f`c=4200 Kg/cm² -RECUBRIMIENTO 50 mm ESPECIFICACIONES TECNICAS DURMIENTE PARA LINEAS SIN CARGA DE ANCLAJES HORIZONTALES ESTANDAR CIVIL TIPICO N° C-A1 1 DE 1 TITULO : PLANO No. ANEXO/UNID. CLASIF. REVIS. HOJA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units
Footprint Area
Building Features
Tags	anchor, autocad, béton armé, block, concrete, diameter, DWG, formwork, horizontal, large, lines, pipes, reinforced concrete, schalung, stahlbeton, support
