Sliding Window DWG Plan for AutoCAD

Sliding Window DWG Plan for AutoCAD

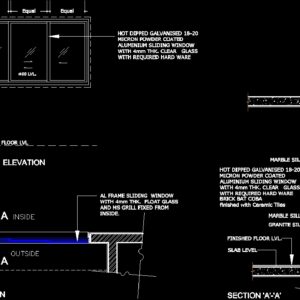

plan; section; elevation detail of aluminium sliding window

Drawing labels, details, and other text information extracted from the CAD file:

epdm gasket, powder coated aluminium frame of approved colour, inside, outside, plan, elevation, unfinished floor lvl, slab level, finished floor lvl., granite sill, marble sill, section ‘a’-‘a’, equal, brick bat coba finished with ceramic tiles

Raw text data extracted from CAD file:

4mm Clear Float Glass EPDM Gasket Powder Coated Aluminium Frame of approved colour \LDETAIL - A 3/4" thk Marble Sill 1" thk Mortar 3/4" thk Granite Sill INSIDE OUTSIDE SCALE :- 1 : 5 \A1;Equal \A1;Equal \A1;Equal OUTSIDE INSIDE A PLAN A AL FRAME SLIDING WINDOW WITH 4mm THK. FLOAT GLASS AND MS GRILL FIXED FROM INSIDE. ±00 LVL. HOT DIPPED GALVANISED 18-20 MICRON POWDER COATED ALUMINIUM SLIDING WINDOW WITH 4mm THK. CLEAR GLASS WITH REQUIRED HARD WARE ELEVATION UNFINISHED FLOOR LVL SLAB LEVEL FINISHED FLOOR LVL. GRANITE SILL MARBLE SILL MARBLE SILL HOT DIPPED GALVANISED 18-20 MICRON POWDER COATED ALUMINIUM SLIDING WINDOW WITH 4mm THK. CLEAR GLASS WITH REQUIRED HARD WARE SECTION 'A'-'A' Equal Equal Equal BRICK BAT COBA finished with Ceramic Tiles

Language	English
Drawing Type	Plan
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Glass, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aluminium, autocad, DETAIL, DWG, elevation, glass, plan, section, sliding, window
