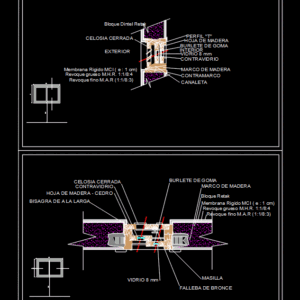

Sliding Window With Wooden Lattice DWG Section for AutoCAD

Transverse and longitudinal section of a woodwork with blocks Retak

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

exterior, wood blade, wooden frame, interior, rubber, rubber trim, gutter, sheet of wood – cedar, closed lattice, long hinge, putty, bronze bolt, retak block, lintel retak block, sheet metal frame, laced, ext

Raw text data extracted from CAD file:

Tapacanto madera 44x12 mm Bastidor cedro 35x60 mm Bisagra especial (p/ doble contacto) + accesorios Taco de 4"x4" 55mm 1.5m 1m 1.10m 1.5m 1m 1.10m EXTERIOR HOJA DE MADERA PERFIL "T" MARCO DE MADERA CONTRAVIDRIO INTERIOR BURLETE DE GOMA VIDRIO 8 mm CONTRAMARCO CANALETA CONTRAVIDRIO HOJA DE MADERA - CEDRO VIDRIO 8 mm CELOSIA CERRADA BISAGRA DE A LA LARGA BURLETE DE GOMA MARCO DE MADERA 55mm 1.5m 1m 1.10m MASILLA FALLEBA DE BRONCE Bloque Retak Revoque grueso M.H.R. 1:1/8:4 Revoque fino M.A.R (1:1/8:3) Membrana Rigido MCI ( e : 1 cm) CELOSIA CERRADA Revoque grueso M.H.R. 1:1/8:4 Revoque fino M.A.R (1:1/8:3) Membrana Rigido MCI ( e : 1 cm) Bloque Dintel Retak 1.5m 1m 1.10m VENTANA CORREDIZA C/ CELOSIA MADERA Marco de chapa Terciado EXT

Language	Spanish
Drawing Type	Section
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Wood, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, blocks, carpentry, DWG, lattice, longitudinal, retak, section, sliding, transverse, window, Wood, wooden
