Small Island Hotel With Pool 2D DWG Design Section for AutoCAD

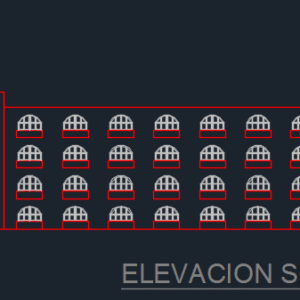

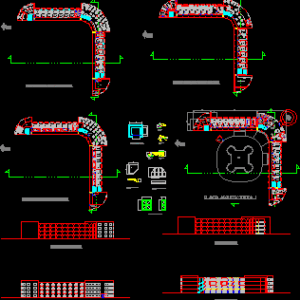

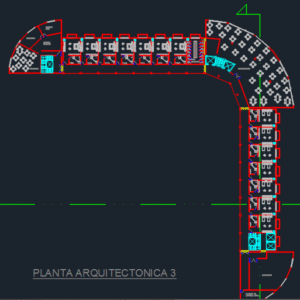

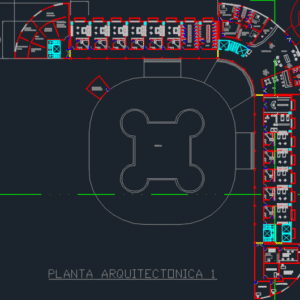

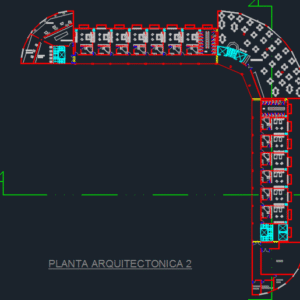

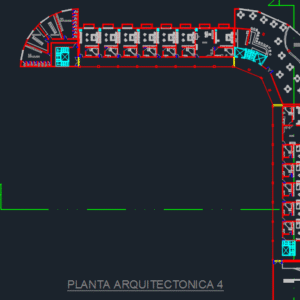

This is the design of a small hotel that has a disco, swimming pool, cafeteria, meeting room, administrative offices, games room, service area, employee lounge. This design includes elevation, floor plans, sections and details.
| Language | Spanish |
| Drawing Type | Section |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
       |
| File Type | dwg, zip |
| Materials | Concrete, Steel |
| Measurement Units | Metric |
| Footprint Area | Over 5000 m² (53819.5 ft²) |
| Building Features | Pool |
| Tags | 2d, accommodation, administrative offices, autocad, beach, cafeteria, Design, details, disco, DWG, elevation, employee, floor plans, Hotel, island, meeting room, plants, Restaurant, section, sections, small, swimming pool |
