Soakaway DWG Block for AutoCAD

Soakaway DWG Block for AutoCAD

Septic providing solutions to small drainage areas

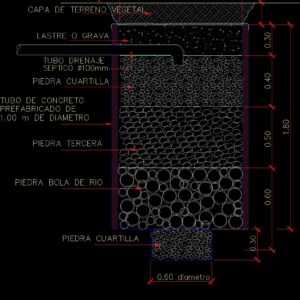

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

diameter, Concrete tube, Prefabricated, diameter, River ball stone, Stone third, Stone sheet, Layer of vegetable soil, Ballast tape, Level of land approx., diameter, Stone sheet, Absorption well, scale, Drainage pipe, septic

Raw text data extracted from CAD file:

0.40 0.50 0.30 0.30 ± d1.00 0.60 diametro 0.30 0.60 1.80 TUBO DE CONCRETO PREFABRICADO DE 1.00 m DE DIAMETRO 0.40 0.50 0.30 0.30 ± d1.00 PIEDRA BOLA DE RIO PIEDRA TERCERA PIEDRA CUARTILLA CAPA DE TERRENO VEGETAL LASTRE O GRAVA NIVEL DE TERRENO APROX. 0.60 diametro 0.30 PIEDRA CUARTILLA 0.60 1.80 POZO DE ABSORCION Escala 1:75 TUBO DRENAJE SEPTICO \U+2205100mm

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	areas, autocad, block, drainage, drains, DWG, kläranlage, providing, septic, small, soakaway, solutions, tanks, treatment plant
