Solar Projection – 7° DWG Full Project for AutoCAD

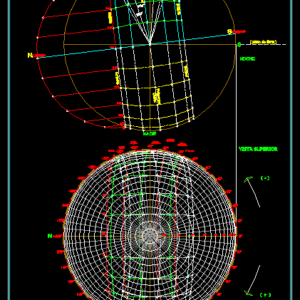

THE SHEET ACCOUNTS COVERING THE SUN AS COMFORT ZONE IN DIFFERENT TIMES FOR THE MOVEMENT OF THE SUN AT LATITUD – 7° ..USED FOR THE ANALYSIS OF A PROJECT AND LOCATION OF VAIN FOR THE LIGHT AND SHADOWS.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

zenith, night, latitude, keel bendezu beni a., orthogonal projection of the mas, environmental technology, course:, student:, theme:, group:, faculty of architecture and urbanism, side view, top view, celestial, nadir, summer, solticio, spring, autumn, equinoxes, winter

Raw text data extracted from CAD file:

-7° 23º.5" 11º.5" 20° CENIT NOCHE S ( plano de tierra ) N -7 LATITUD 7º LATITUD SUR 21 Setiembre 21 Marzo 21 Junio 21 Julio 21 Agosto 21 Mayo 21 Abril 21 Octubre 21 Febrero 21 noviembre 21 Enero 21 Diciembre 12 QUILLA BENDEZU BENI A. PROYECCION ORTOGONAL DEL MAS TECNOLOGIA AMBIENTAL -7º ( - ) ( + ) LATITUD CURSO : ALUMNO : TEMA : GRUPO : FACULTAD DE ARQUITECTURA Y URBANISMO VISTA LATERAL VISTA SUPERIOR 2-22 1-23 0 6-18 5-19 4-20 3-21 7-17 8-16 9-15 10-14 11-13 Celeste N S Celeste 12 6 7 17 8 16 9 15 10 14 11 13 18 O O 0° -90° -100° -110° -120° -130° -140° -150° -160° -170° +-180° 170° 160° 150° 140° 130° 120° 110° 100° 90° 80° 70° 60° 50° 40° 30° 20° 10° 80° 70° 60° 50° 40° 30° 20° 10° -10° -20° -30° -40° -50° -60° -70° -80° 21 Junio 21 Julio 21 Mayo 21 Abril 21 Agosto 21 Febrero 21 Octubre 21 Enero 21 noviembre 21 Diciembre 21 Setiembre 21 Marzo NADIR Verano Solticio Primavera Otoño Equinoccios Solticio Invierno -<> 23º.5" 11º.5" 5

Language	Spanish
Drawing Type	Full Project
Category	Parks & Landscaping
