Spot Placement DWG Block for AutoCAD

Spot Placement DWG Block for AutoCAD

Placement of spot

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

use lamp, spot cutting plant, diameter, spot-type spotlight, spot placement detail, diameter, spot-type spotlight, dimensions, sky, slab lightened with barroblock, fluorescent lamp luminaire cutting plant, fluorescent lamp with lm flow, uses fluorescent lamps with a total luminous flux per lm luminaire, recessed luminaire in ceiling, recessed luminaire in ceiling, long, detail of placement of fluorescent lamp luminaires, sky, with wooden brackets, of the aluminum grid, slab anchored wire, dimensions, slab lightened with barroblock, dimensions, sky, recessed luminaire in ceiling, watts fluorescent lamps, long, slab lightened with barroblock

Raw text data extracted from CAD file:

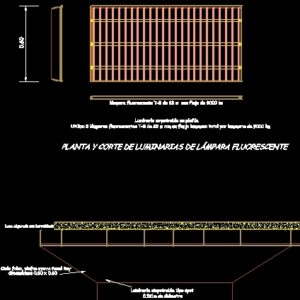

utiliza lámpara MR-16 de 50w PLANTA Y CORTE DE SPOT 0.121m de diámetro Luminaria empotrable tipo spot 0.0595 0.121 DETALLE DE COLOCACIÓN DE SPOT 0.121m de diámetro Luminaria empotrable tipo spot dimensiones 0.60 x 0.60 Cielo falso, plafon marca Panel Rey Losa aligerada con barroblock PLANTA Y CORTE DE LUMINARIAS DE LÁMPARA FLUORESCENTE lámpara fluorescente T-8 de 32 w con flujo de 3000 lm Utiliza 3 lámparas fluorescentes T-8 de 32 w con un fluijo luminoso total por luminaria de 9000 lm Luminaria empotrable en plafón 0.60 Luminaria empotrable en plafón 1.20 m de largo DETALLE DE COLOCACIÓN DE LUMINARIAS DE LAMPARA FLUORESCENTE Cielo falso, plafon marca Panel Rey con taquetes de madera sujetador de la cuadricula de aluminio alambron de 1/4 anclado a la losa dimensiones 0.60 x 0.60 Losa aligerada con barroblock dimensiones 0.60 x 0.60 Cielo falso, plafon marca Panel Rey Luminaria empotrable en plafón 3 lámparas fluorescentes T-8 de 32 watts 1.20 m de largo 1.20 Losa aligerada con barroblock

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Aluminum, Wood
