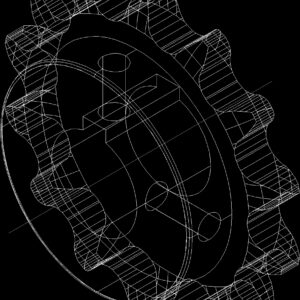

Sprocket14 Teeth DWG Block for AutoCAD
ADVERTISEMENT
ADVERTISEMENT
Sprocket Pinion 14 teeth; Outside Diameter = 157.92; Primitive diameter = 140.78; diameter and depth = 123.63; inner diameter of the hub = 47.625; outer diameter of the hub = 106.36; 31.75 mm step. For a chain with rollers d 19.05 mm diameter and 31.75 mm pitch .
| Language | N/A |
| Drawing Type | Block |
| Category | Industrial |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | |
| Measurement Units | |
| Footprint Area | |
| Building Features | |
| Tags | autocad, block, depth, diameter, DWG, hub, le tuyau, parafusos, pinion, pipe, robinet, rohr, schraub, screw, teeth, tubos, valve, válvulas, ventil, vis |
