Stairway Boat DWG Detail for AutoCAD

Stairway Boat DWG Detail for AutoCAD

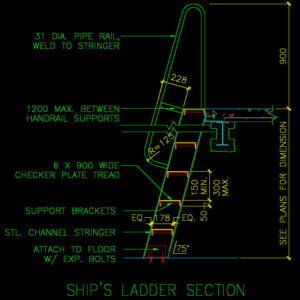

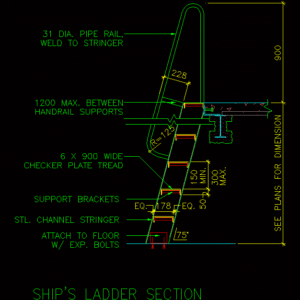

Details staircase ladder for boats ships .

Drawing labels, details, and other text information extracted from the CAD file:

see plans for dimension, min., eq., plans for dimension, dia. pipe, weld to stringer, handrail supports, max. between, exp. bolts, attach to floor, stl. channel stringer, support brackets, checker plate tread, wide, eq., eq., min., max., see plans for dimension, ship’s ladder section

Raw text data extracted from CAD file:

900 SEE PLANS FOR DIMENSION 228 MIN. 50 EQ. EQ. 178 \A1;EQ. \A1;178 \A1;EQ. \A1;50 \A1;MIN. \A1;228 \A1;SEE PLANS FOR DIMENSION \A1;900 31 DIA. PIPE RAIL, WELD TO STRINGER 75° HANDRAIL SUPPORTS 1200 MAX. BETWEEN W/ EXP. BOLTS ATTACH TO FLOOR STL. CHANNEL STRINGER SUPPORT BRACKETS CHECKER PLATE TREAD 6 X 900 WIDE EQ. 178 EQ. 5 MIN. 150 300 MAX. 228 R=125 SEE PLANS FOR DIMENSION 5 SHIP'S LADDER SECTION

Language	English
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, boat, boats, degrau, DETAIL, details, DWG, échelle, escada, escalera, escalier, étape, ladder, leiter, ships, staircase, stairway, step, stufen, treppe, treppen
