Stairway Four Tracts DWG Section for AutoCAD

Stairway Four Tracts DWG Section for AutoCAD

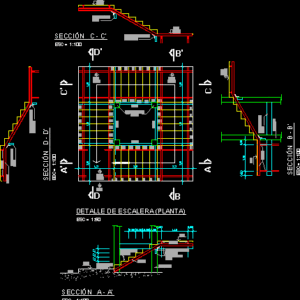

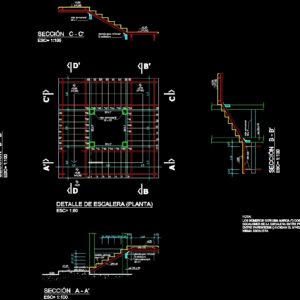

Stairway four tracts – Development in square plant – Sections – specifications by tracts

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

urb. the nucleus parcel parish municipality edo. carabobo., structural tube, this step goes only on p.b., ipn, fluted iron, iron to reinforce the welding, structural tube, cabbage., ipn, cabbage., structural tube, ipn, structural tube, iron to reinforce the welding, structural tube, ipn, of stairs, note: numbers with a mark correspond to the steps of the stair between floors when they are in parentheses indicate the level of the rests of the same staircase

Raw text data extracted from CAD file:

3 2 1 Urb. La Granja, Núcleo D, Parcela D-3, Parroquia Naguanagua, Municipio Valencia, Edo. Carabobo. 1 2 3 6 8 5 7 4 8 9 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 *50 *49 *48 *47 *46 *45 *44 *43 *57 *30 *31 *32 *33 *34 *35 *36 *42 *41 *40 *39 *51 *52 *53 *54 *55 *56 20 x 7 20 x 7 20 x 7 20 x 7 tubo estructural 22 x 22 +0,32 (+5,08) +0,15 +3,89 (+8,65) este escalón va solo en p.b. IPN 100 plancha estriada esp.= 1/8" plancha para reforzar la soldadura tubo estructural 20 x 7 col. 22 x 22 IPN 10 +0,15 +0,32 +1,51 col. 22 x 22 tubo estructural 20 x 7 IPN 100 +2,70 (+7,46) (+7,46) +2,70 +1,51 (+8,65) +3,89 (+7,46) +2,70 tubo estructural 20 x 7 plancha para reforzar la soldadura plancha para reforzar la soldadura tubo estructural 20 x 7 IPN 100 IPN 100 B' B D' D C' C A A' \LSECCIÓN A - A' \lESC= 1:100 \LSECCIÓN B - B' \lESC= 1:100 \LSECCIÓN C - C' \lESC= 1:100 \LSECCIÓN D - D' \lESC= 1:100 \LDETALLE DE ESCALERA (PLANTA) \lESC= 1:50 1,5 1,8 1,5 1,5 1,8 1,5 1,5 1,8 1,5 0,20 1,10 0,20 0,30 0,30 0,30 0,30 .17 .17 .17 0,20 1,10 0,20 NOTA: LOS NÚMEROS CON UNA MARCA (*) CORRESPONDEN A LOS ESCALONES DE LA ESCALERA ENTRE PISO 1 Y 2, Y CUANDO ESTAN ENTRE PARENTESIS () INDICAN EL NIVEL DE LOS DESCANSOS DE LA MISMA ESCALERA

Language	Spanish
Drawing Type	Section
Category	Stairways
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, degrau, development, DWG, échelle, escada, escalier, étape, ladder, leiter, plant, section, sections, specifications, square, staircase, stairway, step, stufen, tracts, treppe, treppen
