Stairway One Tract DWG Block for AutoCAD

Stairway One Tract DWG Block for AutoCAD

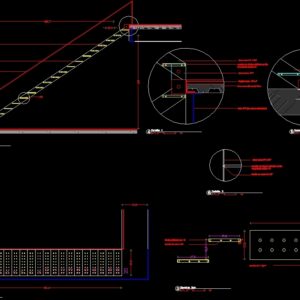

Stairway in one tract

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail, number, steel slab, plate steel lime. bent, punch, see railing plane, steel screw, bent sheet lime., steel screw, steel plate, step of cold-cut die-cut sheet, steel plate, angle steel, Steel slab, work ipr plan, steel plate, step of cold-cut die-cut sheet, steel plate, steel sole, steel plate, plate welded rod, detail, detail, detail, step of cold-cut die-cut sheet, step type, staircase plant, longitudinal cut

Raw text data extracted from CAD file:

N+0.00 \A1;27.5 \A1;91.5 \A1;27.5 \A1;466.7 \A1;91.5 \A1;521.6 \A1;91.5 \A1;18.3 \A1;27.5 \A1;27.5 5 5 5 DETALLE 0 1 2 4 1:100 Numero 2 3 1 13 4 5 7 6 8 10 9 12 11 15 14 17 16 NPT+116.14 Barandal, solera de 1 1/2" x 3/4" acero Escalón, placa acero cal. 10 doblado 27.5 punzón de 1" @ 4" ver plano de barandales 5 5 366 5 5 d-2 d-3 18 19 20 5 5 5 tornillo de acero 1/2" lámina doblada cal. 10 1" 1/2" tornillo de acero de 1/2" placa acero 8" x 3/4" escalón de lámina doblada en frio troquelada calibre 10 placa acero 3/4" ángulo acero 6" x 4" losa acero (Romsa) 10cm trabe IPR (ver plano estructural) placa acero 8" x 3/4" escalón de lámina doblada en frio troquelada calibre 10 placa acero 8" x 3/4" solera acero 2 1/2" x 1/2" placa acero 3/4" placa acero 3/4" varilla soldada a placa Detalle 3 1 2 4 1:5 6 Detalle 1 1 2 4 1:5 4 Detalle 2 1 2 4 1:5 5 escalón de lámina doblada en frio troquelada calibre 10 91.5 Escalon tipo .2 .4 .8 1:5 3 Planta escalera .2 .4 .8 1:20 2 Corte longitudinal .2 .4 .8 1:20 1

Language	Spanish
Drawing Type	Block
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, degrau, DWG, échelle, escada, escalier, étape, ladder, leiter, staircase, stairway, step, stufen, tract, treppe, treppen
