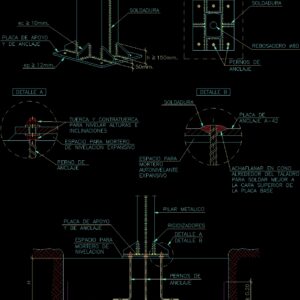

Foundation over concrete footing of pillar 2 UPN

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Support plate, Anchor, detail, Plate, anchorage, Exp., Space for mortar, Inclinations, To level heights, Nut counter nut, motherboard, The upper face of, For better welding, Around the hole, Bevel in cone, Rough finish, Grill, Support blocks, Metal pillar, expansive, Self-leveling, space for, mortar, detail, Bolts, anchorage, Bolt of, Mortar of, Leveling, space for, Anchor, Support plate, Compacted base, Lower arm, Shoe, cleaning concrete, Stiffeners, Stiffener, welding, Bolts, anchorage, Overflow, Metal pillar, welding, detail, Pillar upn, In foundation. Semi-rigid union

Raw text data extracted from CAD file:

ep 12mm. ec 10mm. PLACA DE APOYO Y DE ANCLAJE DETALLE A H 0.10 PLACA DE ANCLAJE A-42 DE NIVELACION EXPANSIVO ESPACIO PARA MORTERO INCLINACIONES PARA NIVELAR ALTURAS E TUERCA Y CONTRATUERCA LA PLACA BASE LA CARA SUPERIOR DE PARA SOLDAR MEJOR A ALREDEDOR DEL TALADRO ACHAFLANAR EN CONO 0.20 ACABADO RUGOSO DE PARRILLA 5cm. CALZOS DE APOYO PILAR METALICO EXPANSIVO AUTONIVELANTE ESPACIO PARA MORTERO DETALLE A DETALLE B PERNOS DE ANCLAJE ANCLAJE PERNO DE MORTERO DE NIVELACION ESPACIO PARA Y DE ANCLAJE PLACA DE APOYO 0.20 BASE COMPACTADA 0.20 ARMADO INFERIOR ZAPATA HORMIGON DE LIMPIEZA RIGIDIZADORES RIGIDIZADOR SOLDADURA PERNOS DE ANCLAJE REBOSADERO d80 PILAR METALICO h 150mm. 50mm. SOLDADURA SOLDADURA DETALLE B Arranque de Pilar (2 UPN Cerrados) en Cimentacion. Union Semirrigida
