Stirrup geometry 6 meters high and sent at 30 degrees
ADVERTISEMENT
ADVERTISEMENT

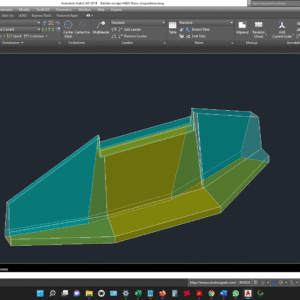

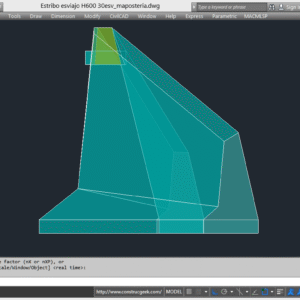

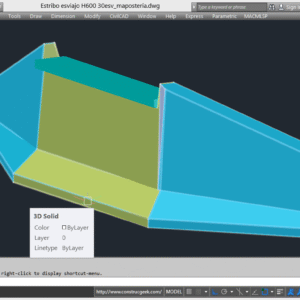

Este es la geometría de un estribo de 600 centímetros de altura y enviajado a 30 grados, en 3D, se presenta en formato de AutoCad, pero también lo ofrezco en formato SolidWorks, sobre pedido se puede entregar en alturas diferentes y diferentes esviajes. Esto de acuerdo a la normativa SCT.
Stirrup geometry 6 meters high and sent at 30 degrees
This is the geometry of a stirrup 600 centimeters high and offset at 30 degrees, in 3D, it is presented in AutoCad format, but I also offer it in SolidWorks format, on request it can be delivered in different heights and different offsets. This according to the SCT regulations.
| Language | Spanish |
| Drawing Type | Model |
| Category | Roads, Bridges and Dams |
| Additional Screenshots |
    |
| File Type | dwg |
| Materials | Other |
| Measurement Units | Metric |
| Footprint Area | 10 - 49 m² (107.6 - 527.4 ft²) |
| Building Features | |
| Tags | Estribo para puente 30° |
