Storage Tank 3D DWG Model for AutoCAD

Storage Tank 3D DWG Model for AutoCAD

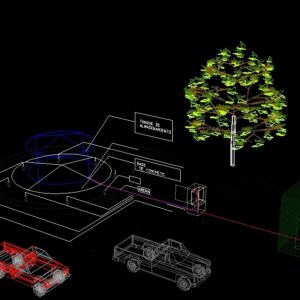

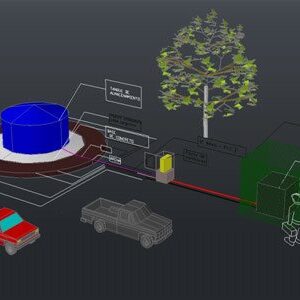

is a practical design for anyone who wants to present a design by impressed current cathodic protection, with 8 anodes in 3D.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

storage tank, concrete base, rectifier, pvc, preventive mesh, anode, sand, post monitoring, negative point, off

Raw text data extracted from CAD file:

TANQUE DE ALMACENAMIENTO BASE DE CONCRETO RECTIFICADOR \A1; 1F #AWG - PVC \S1/2;" MALLA PREVENTIVA ANODO ARENA Poste de^J monitoreo Punto soldadura^Jcable negativo OFF ON
