Structure Ridge Roof DWG Detail for AutoCAD

Structure Ridge Roof DWG Detail for AutoCAD

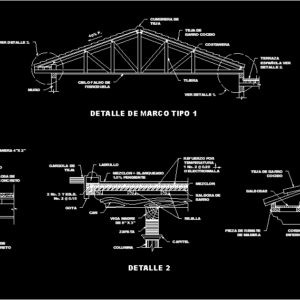

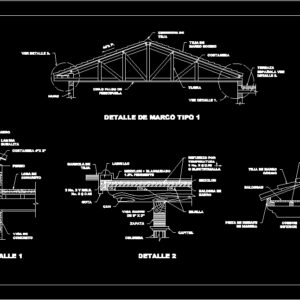

Constructive details of structure ridge roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Wall, false sky of fibroduela, scissors, roof ridge, see detail, costanera, clay tile, Spanish terrace see detail, see detail, detail of type frame, top cord, lower cord, Wall, wood crown hearth, piece of wood auction, tiles, clay tile, costanera, rejilllas, capital, column, shoe, beam mother of, dog, rack, clay tile, mix, drop, do not. eslb do not., brick, tile gargola, Bleach bleached earring, reinforcement for temperature no. electromalla, detail, concrete beam, gotten up, concrete slab, duralite lamina, clay tile, top cord, lower cord, molding, cap screw, costanera, detail

Raw text data extracted from CAD file:

0.15 0.30 0.2 0.20 MURO CIELO FALSO DE FIBRODUELA TIJERA CUMBRERA DE TEJA 40% P. VER DETALLE 3. COSTANERA TEJA DE BARRO COCIDO TERRAZA ESPAÑOLA VER DETALLE 2. VER DETALLE 1. DETALLE DE MARCO TIPO 1 CORDON SUPERIOR CORDON INFERIOR MURO SOLERA DE CORONA DE MADERA 6" X 8" PIEZA DE REMATE DE MADERA BALDOSAS TEJA DE BARRO COCIDO COSTANERA 4" X 2" REJILLLAS CAPITEL COLUMNA ZAPATA VIGA MADRE DE 8" X 3" CAN REJILLA BALDOSA DE BARRO MEZCLON GOTA 2 No. 3 Y ESLB. No. 2 @ 0.15 LADRILLO GARGOLA DE TEJA MEZCLON + BLANQUEADO 1.5% PENDIENTE REFUERZO POR TEMPERATURA 1 No. 2 @ 0.20 O ELECTROMALLA DETALLE 2 DETALLE 3 VIGA DE CONCRETO 0.30 0.2 0.20 0.15 LEVANTADO LOSA DE CONCRETO LAMINA DURALITA TEJA DE BARRO COCIDO CORDON SUPERIOR CORDON INFERIOR MOLDURA PERNO COSTANERA 4"X 2" DETALLE 1

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, constructive, cover, dach, DETAIL, details, DWG, hangar, lagerschuppen, ridge, roof, shed, structure, terrasse, toit
