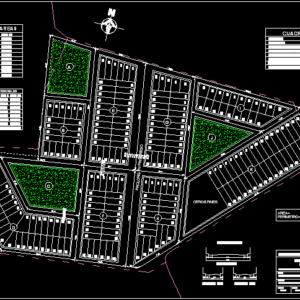

Subdivision Map, Chiclayo, Peru DWG Block for AutoCAD

Subdivision Map, Chiclayo, Peru DWG Block for AutoCAD

Chiclayo city – Peru

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Catholic University Santo Toribio de Mogrovejo, faculty of engineering professional school of architecture, urban ratings, arq. jorge inchaustegui, july frederick herrera, course:, teacher:, student:, scale:, date:, sheet:, sheet number:, stocking, area chart, Apple, useful area, free area, recreation area, area of ​​education, other purposes, circulation area, gross area, salable area, area chart, education, other purposes, apple batches, salable area chart, total area lots, prolong. av progress, section, Catholic University Santo Toribio de Mogrovejo, faculty of engineering professional school of architecture, urban ratings, arq. jorge inchaustegui, july frederick herrera, course:, teacher:, student:, scale:, date:, sheet:, sheet number:, stocking, ornamentation of parks, location data, country, Department, district, owner, unit cadastral, Peru, lambayeque, Department, Chiclayo, regulation, parameter, regulation, draft, parameter, regulation, draft, zoning, free area, area lot min, front lot, height of building, retirement, parking lot, gross density, net density, contributions, education, recreation, other uses, Danger zone, monumental area, alignment, rdm, floors, not due, negative, not due, Catholic university saint toribio de mogrovejo, professional school of architecture, urban ratings, housing workshop, arq. jorge inchaustegui samame, esc. indicated, November of, tower, contrat., Chiclayo, july frederick herrera marin, location plan, location map, Catholic University Santo Toribio de Mogrovejo, faculty of engineering professional school of architecture, urban ratings, arq. jorge inchaustegui, july frederick herrera, course:, teacher:, student:, scale:, date:, sheet:, sheet number:, stocking, topographic map, layout plan, road section

Raw text data extracted from CAD file:

72,26 49,84 50,7 82,39 50,64 108,65 100,87 89,31 44,83 106,44 95,23 51,56 50,07 115,81 50,64 12,44 72,93 43,81 51,08 57,92 54,25 111,85 47,01 181,62 63,51 64,5 46,71 60,35 1.2 1.8 5.4 1.8 1.2 1.2 1.8 1.8 1.2 15.6 11.4 21.6 9.6 1.2 1.8 5.4 1.2 35,36 22,25 20,92 24,18 232,52 26,22 205,43 48,82 55,63 59,82 43,62 11,06 11 10,11 7,93 17,37 17,43 59,62 149,57 19,11 92° 161° 123° 125° 46° 143° 127° 134° 168° AREA= 50 092.4852 PERIMETRO= 990.6903 \W3.64985; UNIVERSIDAD CATOLICA SANTO \W3.64985; TORIBIO DE MOGROVEJO FACULTAD DE INGENIERIA - ESCUELA PROFESIONAL DE ARQUITECTURA HABILITACIONES URBANAS ARQ. JORGE INCHAUSTEGUI 1 / 500 HERRERA MARIN, JULIO FREDERICK - 081NO11648 25 / 11 / 2009 A-01 CURSO: DOCENTE: ALUMNO: ESCALA: FECHA: LAMINA: Nº LAMINA: LOTIZACIÓN CUADRO DE AREAS D C B A E F H G K MANZANA "A" MANZANA "B" MANZANA "C" MANZANA "D" MANZANA "E" MANZANA "F" MANZANA "G" MANZANA "H" MANZANA "I" MANZANA "J" MANZANA "K" 1442 m² 1944 m² 2129 m² 4615 m² 3604 m² 3046 m² 3236 m² 2579 m² 1904 m² 1402 m² 6107 m² J I AREA UTIL AREA LIBRE AREA RECREACIÓN (10%) AREA DE EDUCACIÓN (2%) OTROS FINES (3%) AREA CIRCULACIÓN (36%) AREA BRUTA (100%) AREA VENDIBLE (49%) CUADRO DE AREAS EDUCACIÓN OTROS FINES 50092 m² 1471 m² 1097 m² 4973 m² 24466 m² 18084 m² MANZANA "B" 20 Lotes - MANZANA "D" 34 Lotes - MANZANA "E" 34 Lotes - MANZANA "F" 24 Lotes - MANZANA "G" 31 Lotes - MANZANA "H" 24 Lotes - MANZANA "I" 20 Lotes - MANZANA "K" 40 Lotes - 1944 m² 3518 m² 3604 m² 3046 m² 3236 m² 2579 m² CUADRO DE AREAS VENDIBLES 1904 m² 4635 m² 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 14 15 20 19 18 17 16 21 22 23 24 25 26 27 28 30 31 32 33 34 1 2 3 4 5 6 18 19 20 21 22 23 16 17 18 19 20 21 7 8 9 10 11 12 13 14 15 16 17 27 26 25 24 28 29 30 31 32 33 34 1 2 3 4 5 7 8 9 10 11 12 13 14 15 6 23 22 27 26 25 24 28 29 30 31 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 7 8 9 10 11 12 13 14 11 11 12 13 14 15 16 12 13 14 15 16 17 21 20 19 18 17 22 23 24 21 20 19 18 22 23 24 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 AREA TOTAL 227 Lotes - 24466 m² 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 PROLONG. AV PROGRESO 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 \W0.73513; SECCION A-A \W0.73513; SECCION B-B \W0.73513; SECCION C-C \W0.60111; B B \W0.60111; B B \W0.86400; A A \W3.64985; UNIVERSIDAD CATOLICA SANTO \W3.64985; TORIBIO DE MOGROVEJO FACULTAD DE INGENIERIA - ESCUELA PROFESIONAL DE ARQUITECTURA HABILITACIONES URBANAS ARQ. JORGE INCHAUSTEGUI 1 / 1000 HERRERA MARIN, JULIO FREDERICK - 081NO11648 25 / 11 / 2009 A-01 CURSO: DOCENTE: ALUMNO: ESCALA: FECHA: LAMINA: Nº LAMINA: LOTIZACIÓN \W6.75477; ORNAMENTACIÓN DE PARQUES 5 5 5 5 DATOS DE UBICACIÓN PAÍS DEPARTAMENTO DISTRITO PROPIETARIO UNIDAD CATASTRAL Perú Lambayeque DEPARTAMENTO Chiclayo 12845 12846 \T1.55;CUADRO DE REGLAMENTO PARÁMETRO REGLAMENTO PROYECTO PARÁMETRO REGLAMENTO PROYECTO ZONIFICACIÓN ÁREA LIBRE ÁREA MIN LOTE FRENTE MIN LOTE ALTURA DE EDIFICACIÓN RETIRO ESTACIONAMIENTO DENSIDAD BRUTA DENSIDAD NETA APORTES EDUCACIÓN RECREACIÓN OTROS USOS ZONA DE RIESGO ZONA MONUMENTAL ALINEAMIENTO RDM 35% 90 \H0.9167x;m\Q-1;\T2.15;² 6.00 m 9.00m ó 3 pisos 2.00m NO EXIGIBLE 130 a 200 hab/Há 240 a 320 hab/Há 13% 2 % 8 % 3 % NEGATIVO NEGATIVO NO EXIGIBLE \W7.13511; UNIVERSIDAD CATÓLICA SANTO \W6.99630; TORIBIO DE MOGROVEJO \W2.20035; ESCUELA PROFESIONAL \W2.20035; DE ARQUITECTURA \W0.70579; HABILITACIONES \W0.70579; URBANAS \W8.22606; VIVIENDA \W5.00965; TALLER \T0.85;U-01 Arq. JORGE INCHAUSTEGUI SAMAME Esc. Indicada NOVIEMBRE DE 2009 TORRE TORRE "H y M Contrat. Gener." Chiclayo JULIO FREDERICK HERRERA MARIN PLANO DE LOCALIZACIÓN PLANO DE UBICACIÓN 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 \W3.64985; UNIVERSIDAD CATOLICA SANTO \W3.64985; TORIBIO DE MOGROVEJO FACULTAD DE INGENIERIA - ESCUELA PROFESIONAL DE ARQUITECTURA HABILITACIONES URBANAS ARQ. JORGE INCHAUSTEGUI 1 / 500 HERRERA MARIN, JULIO FREDERICK - 081NO11648 25 / 11 / 2009 A-01 CURSO: DOCENTE: ALUMNO: ESCALA: FECHA: LAMINA: Nº LAMINA: LOTIZACIÓN \W0.60111; PLANO TOPOGRAFICO \W0.60111; PLANO DE LOTIZACIÓN - MANZANEO Y TRAZADO \W0.73513; SECCION VIALES
