SubmuraciÓN Ha DWG Detail for AutoCAD

SubmuraciÓN Ha DWG Detail for AutoCAD

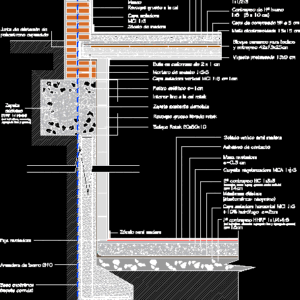

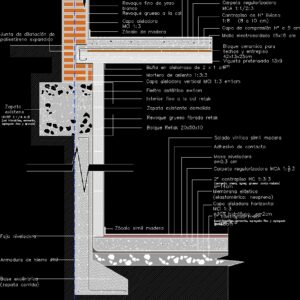

Detail submuración completed construction of a HA on the shaft and strip footing existing mediator. It is composed of double underlayment to absorb the negative pressure exerted by the groundwater.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Mario., I move away. bruno, arq. roxana natalino, students: Gabriel. Paul., cat. arq. h. nottoli, buildings, t. p., group, teacher:, shoe exists, wooden plinth, thick plaster lime, white plaster fine plaster, mci insulation layer, Ceramic block for mezzanine ceilings, of light hº, mca regularizing folder, thin layer adhesive, carpet, compression layer hº cm, expanded polystyrene expansion joint, Similar wood socket, thick fibre plaster retak, fine interior lime retak, mci vertical insulator layer, seat mortar, asphalt felt, buña en cielorraso de cm, existing shoe demolished, bolque retak, e.d.p., eccentric base, Iron armor, prestressed joist cm, electrowelded mesh cm, hhrp, fine aggregate, hhrp underfloor, fine added aggregate, contrapiso hc, agre. thick: singing, regularizer mca, contact adhesive, vinyl similar wood, horizontal waterproof mci insulation layer, elastic membrane, bulldozer mass cm, bulldozer, Mario., I move away. bruno, arq. roxana natalino, students: Gabriel. Paul., cat. arq. h. nottoli, buildings, t. p., group, teacher:, esc .:, detail of submuration in reinforced concrete

Raw text data extracted from CAD file:

Pujalka, Mario. Guillen, Alejo. Stauber, Bruno. \W3.20000; Arq. Roxana Natalino 05 05 ALUMNOS: Roque, Gabriel. Villalba, Pablo. \W3.20000; CAT. ARQ. H. NOTTOLI CONSTRUCCIONES I T. P. Nº1 Grupo Docente: 2009 Zapata existene Zócalo de madera Revoque grueso a la cal Revoque fino de yeso blanco Capa aisladora MCI 1:3 Bloque ceramico para techos y entrepiso 42x13x25cm \A1;Contrapiso de Hº liviano 1:8 (8 a 10 cm) Carpeta regularizadora MCA 1:1/2:3 Adhesivo de capa delgada Alfombra Capa de compresión Hº e 5 cm Junta de dilatación de poliestireno expandido Zócalo simil madera Revoque grueso fibrado retak Interior fino a la cal retak Capa aisladora vertical MCI 1:3 e=1cm Mortero de asiento 1:3:3 Fieltro asfáltico e=1cm Buña en cielorraso de 2 x 1 cm Zapata existente demolida Bolque Retak 20x50x10 E.D.P. Base excéntrica (zapata corrida) Armadura de hierro Ø10 Vigueta pretensada 13x9 cm Malla electrosoldada 15x15 cm HHRP 1:1/4:4:8 (cal hidraúlica, cemento, agregado fino y grueso) 1º contrapiso HHRP 1:1/4:4:8 (cal hidraúlica, cemento, agregado fino y agregado grueso) 2º contrapiso HC 1:3:3 (cemento, arena, agreg. grueso: canto rodado) \A1;Carpeta regularizadora MCA 1:\S1/2;:3 Adhesivo de contacto Solado vinilico simil madera e=14cm Capa aisladora horizontal MCI 1:3 +10% hidrófugo e=2cm Membrana elástica (elastomérica: neopreno) e=18cm Masa niveladora e=0.3 cm Faja niveladora Pujalka, Mario. Guillen, Alejo. Stauber, Bruno. \W3.20000; Arq. Roxana Natalino 05 03 ALUMNOS: Roque, Gabriel. Villalba, Pablo. \W3.20000; CAT. ARQ. H. NOTTOLI CONSTRUCCIONES I T. P. Nº1 Grupo Docente: 2009 ESC.: 1:5 DETALLE DE SUBMURACION EN HORMIGON ARMADO

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, basement, completed, construction, DETAIL, DWG, Existing, footing, FOUNDATION, foundations, fundament, ha, shaft, strip, submuracion
