Subsurface Drainage DWG Block for AutoCAD

Subsurface Drainage DWG Block for AutoCAD

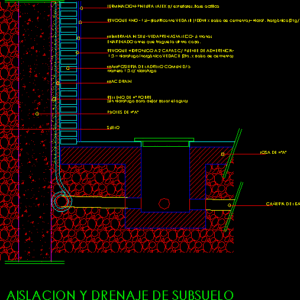

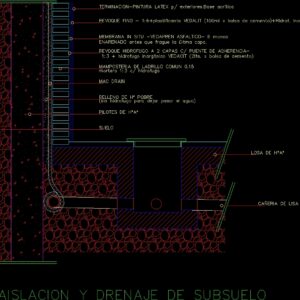

Subsoil drainage for high-rise buildings with log Pipe 2%.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

floor, piles of hua, Poor filler, water-proof to pass the, mac drain, common brick masonry, water-repellent coatings, membrane in situ hands, flat pipe, slab of hua, subsoil drainage insulation, waterproof mortar, thin plaster vedalit bag, Acrylic latex.Acrylic base, water inorganic vedacit bag, sanded before it fragments the last layer.

Raw text data extracted from CAD file:

SUELO PILOTES DE HºAº RELLENO DE Hª POBRE (sin hidrofugo para dejar pasar el agua) MAC DRAIN MAMPOSTERIA DE LADRILLO COMUN 0.15 REVOQUE HIDROFUGO A 2 CAPAS C/ PUENTE DE ADHERENCIA- MEMBRANA IN SITU -VEDAPREN ASFALTICO- 6 manos CAÑERIA DE LISA (evacuación) LOSA DE HºAº AISLACION Y DRENAJE DE SUBSUELO mortero 1:3 c/ hidrofugo REVOQUE FINO - 1:6+plastificante VEDALIT (100ml x bolsa de cemento)+Hidrof. Inorgánico(2kg/bc) TERMINACION-PINTURA LATEX p/ exteriores.Base acrílica 1:3 + hidrofugo inorgánico VEDACIT (2lts. x bolsa de cemento) ENARENADO antes que frague la últma capa.

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Masonry
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, buildings, dach, dalle, drainage, DWG, escadas, escaliers, highrise, lajes, log, mezanino, mezzanine, pipe, platte, reservoir, roof, slab, stair, subsoil, telhado, toiture, treppe
