Sushi Bar Project DWG Full Project for AutoCAD

Sushi Bar Project DWG Full Project for AutoCAD

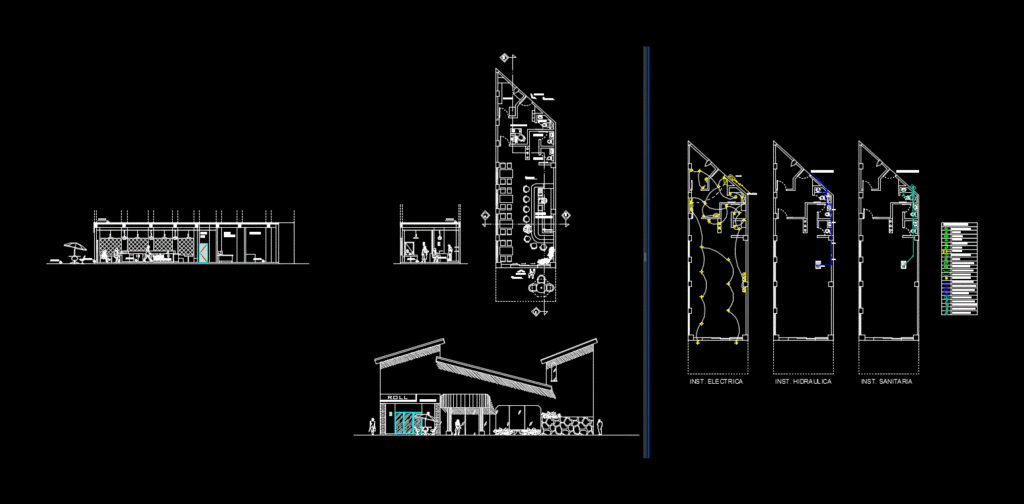

Plants – sections – facades – dimensions – designations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

warehouse, bathroom m, bathroom h, area admin., preparation area, access, roll, sushi bar, administrative area, bathroom h, connection, meter, center lamp, simbology used, rotolita, buttress, damper, apag. ladder, contact, telephone outlet, board, general switch, light regulator, wiring by ceiling, wiring by floor, air extractor, commercial outlet, water meter, inst. electric, inst. hydraulic, inst. sanitary, tube ventilates pvc sanit.

Raw text data extracted from CAD file:

BODEGA \A1;\S1/2;\H1.4286x; BAÑO BAÑO M BAÑO H AREA ADMIN. AREA DE PREPARACION ACCESO ACCESO ROLL SUSHI BAR A A´ B´ B BODEGA AREA ADMINIS. BAÑO H AREA DE PREPARACION NPT +/- 0.00 M NPT + 0.15 M NPT + 0.25 M NPT + 0.15 M NPT + 4.50 M NPT + 0.15 M NPT + 0.25 M NPT + 4.50 M NTP + 0.25 M NTP + 0.15 M NTP +/- 0.00 M NTP +/- 0.00 M ACOMETIDA MEDIDOR LAMPARA DE CENTRO SIMBOLOGIA UTILIZADA ROTOLITA ARBOTANTE APAGADOR APAG. ESCALERA CONTACTO SALIDA DE TELEFONO ACOMETIDA T TABLERO T T INTERRUPTOR GENERAL REGULADOR DE LUZ CABLEADO POR PLAFON CABLEADO POR PISO ESTRACTOR DE AIRE M TOMA COMERCIAL 19 mm 19 mm 19 mm 13 mm 13 mm 13 mm TUBERIA COBRE P/AGUA CODO A 90° COBRE P/AGUA DOBLE "T" COBRE P/AGUA MEDIDOR DE AGUA M TOMA COMERCIAL R INST. ELECTRICA INST. HIDRAULICA INST. SANITARIA R REGISTRO 60 X 40 CM CODO PVC 45° SANITARIO REDUCTOR 4"/1" PVC SANIT. TUBO VENTILA PVC SANIT. ´Y´ 4" PVC SANITARIO

Language	Spanish
Drawing Type	Full Project
Category	Hotel, Restaurants & Recreation
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	accommodation, autocad, BAR, casino, designations, dimensions, DWG, facades, full, hostel, Hotel, plants, Project, Restaurant, restaurante, sections, spa
