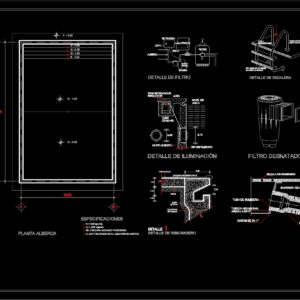

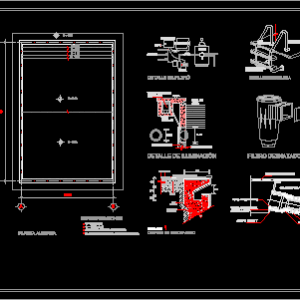

Swimming Pool 10x15m DWG Detail for AutoCAD

Swimming Pool 10x15m DWG Detail for AutoCAD

Pool constructive details – Stair – Skim filter – Ilumination

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

non-slip tile, cm., concrete, overflow detail, aquatronic, filter detail, lighting detail, firm, pegazulejo, pool wall, swimming pool, bomb, tube, reducer, transformer, slab, filtration, gaskets, reduction, pool sump, drain pan, skimmer filter, ring of, hex nut, sump pipe, Specifications, coating, the sterilizer will be aquatronic sistem., was used Venetian mozaico., fy, fc, double mochon, stairway detail, aluminum step, Water, level of, removable, anchor, filter, railing, pool plant, detail, sleeve

Raw text data extracted from CAD file:

AZULEJO ANTIDERRAPANTE @ 20 cm. d 3/8" 250 Kg/cm2. CONCRETO DETALLE DE REBOSADERO AQUATRONIC DETALLE DE FILTRO DETALLE DE ILUMINACIÓN 2.85 FIRME 0.05 PEGAZULEJO 0.10 0.10 MURO ALBERCA ALBERCA BOMBA DIAM.=30 TUBO REDUCTOR TRANSFORMADOR LOSA 220 V 220 V FILTRACION 3.10 JUNTAS DE 2"x 1" REDUCCIÓN SUMIDERO DE ALBERCA REJILLA DE SUMIDERO FILTRO DESNATADOR ARGOLLA DE 2" TUERCA HEXAGONAL TUBO DE SUMIDERO 0.18 ESPECIFICACIONES 0.35 REVESTIMIENTO EL ESTERILIZADOR SERA AQUATRONIC SISTEM. SE UTILIZARA MOZAICO VENECIANO. f'y = 4200 kg/cm2. f'c = 200 kg/cm2. MOCHON DOBLE DE 1" 2 15.00 10.00 B N - 2.30 N - 1.40 DETALLE DE ESCALERA (revestido de plastico) PELDAÑO DE ALUMINIO AGUA NIVEL DE DESMONTABLE ANCLA FILTRO (acero inoxidable) PASAMANOS 1 N - 1.20 N - 1.00 N - 0.80 N - 0.60 N + 0.00 7 PLANTA ALBERCA A DETALLE 1 MANGUITO 10cm. diam.32

Language	Spanish
Drawing Type	Detail
Category	Pools & Swimming Pools
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Plastic
Measurement Units
Footprint Area
Building Features	Pool
Tags	autocad, constructive, DETAIL, details, DWG, filter, ilumination, piscina, piscine, POOL, schwimmbad, stair, swimming, swimming pool, xm
