Symbology – As – Built Gas DWG Block for AutoCAD

Symbology – As – Built Gas DWG Block for AutoCAD

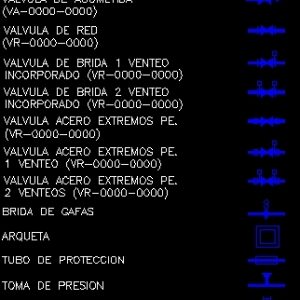

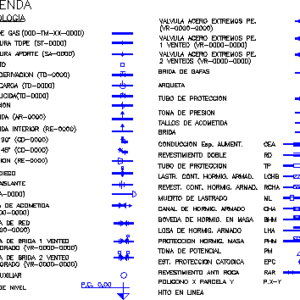

Symbology for planes as-built of gas according Repsol

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

legend, vent, vent, Incorporated, chap, steel valve ends pe., vent flange valve, protection tube, chest, steel valve ends pe., vent flange valve, network valve, insulating board, blind disk, reduction, elbow, rush, you load, derivation, sleeve, gas line, transition, pressure shot, rush stems, flange, Butt welding, glasses flange, welding contribution, connection valve, interior rush, symbology, cea, driving esp. increase, double coating, protection tube, lchb, lastr. cont. concrete armad., rcha, coat cont. concrete armad., dead ballast, cha, concrete channel armed, bhm, concrete vault mass, lha, concrete slab armed, phm, concrete protection dough, taking of potential, epc, its T. cathodic protection, rar, anti rock coating, polygon plot, milestone online, auxiliary landmark, epc, p.c., level level

Raw text data extracted from CAD file:

LEYENDA 2 VENTEOS (VR-0000-0000) 1 VENTEO (VR-0000-0000) INCORPORADO (VR-0000-0000) INCORPORADO (VR-0000-0000) CAP (CA-0000) VALVULA ACERO EXTREMOS PE. VALVULA ACERO EXTREMOS PE. VALVULA DE BRIDA 2 VENTEO TUBO DE PROTECCION ARQUETA VALVULA ACERO EXTREMOS PE. VALVULA DE BRIDA 1 VENTEO VALVULA DE RED JUNTA AISLANTE DISCO CIEGO REDUCCION (RE-0000) CODO 45° (CD-0000) CODO 90° (CD-0000) ACOMETIDA (AR-0000) TE DE CARGA (TD-0000) TE DE DERIVACION (TD-0000) MANGUITO LINEA DE GAS TE REDUCIDA(TD-0000) TRANSICION TOMA DE PRESION TALLOS DE ACOMETIDA BRIDA SOLDADURA TOPE (ST-0000) BRIDA DE GAFAS SOLDADURA APORTE (SA-0000) (000-TM-XX-0000) VALVULA DE ACOMETIDA (VA-0000-0000) (VR-0000-0000) ACOMETIDA INTERIOR (RE-0000) (VR-0000-0000) SIMBOLOGIA CEA CONDUCCION Esp. AUMENT. RD REVESTIMIENTO DOBLE TP TUBO DE PROTECCION LCHB LASTR. CONT. HORMIG. ARMAD. RCHA REVEST. CONT. HORMIG. ARMAD. ML MUERTO DE LASTRADO CHA CANAL DE HORMIG. ARMADO BHM BOVEDA DE HORMIG. EN MASA LHA LOSA DE HORMIG. ARMADO PHM PROTECCION HORMIG. MASA PM TOMA DE POTENCIAL EPC EST. PROTECCION CATODICA RAR REVESTIMIENTO ANTI ROCA POLIGONO X PARCELA Y P.X-Y HITO EN LINEA HITO AUXILIAR PM EPC P.C. 0,00 COTA DE NIVEL

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, built, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, PLANES, provision, repsol, symbology, wasser bestimmung, water
