Tank DWG Block for AutoCAD

Tank DWG Block for AutoCAD

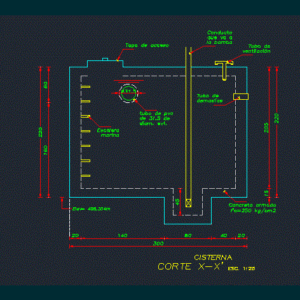

Rainwater Tank

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cut, tank, Reinforced concrete, Conduit going the pump, Access cover, Marine staircase, air duct, Pipe of pvc of diam. Ext., Esc., Tube of excess

Raw text data extracted from CAD file:

140 300 160 220 205 15 220 d31.5 60 40 20 20 80 45 CORTE X-X' CISTERNA Elev= 498.304m 140.0 300.0 Concreto armado f'c=250 kg/cm2 160.0 5 205.0 15.0 5 20.0 20.0 d<> 60.0 Conducto que va a la bomba Tapa de acceso Escalera marina Tubo de ventilación tubo de pvc de 31.5 de diam. ext. ESC. 1:25 Tubo de demasías 80.0 40.0 45.0

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, rainwater, tank, wasser bestimmung, water
