Threshold Detail DWG Detail for AutoCAD

Threshold Detail DWG Detail for AutoCAD

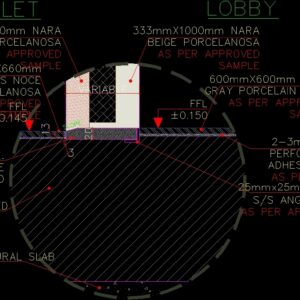

Bathroom threshold details transition of flooring from one space to another (lobby to bathroom)

Drawing labels, details, and other text information extracted from the CAD file:

variable, cascais noce porcelanosa as per approved sample, nara beige porcelanosa as per approved sample, screed, structural slab, thk. high performance tile adhessive mortar as per approved sample, dark gray porcelain tiles as per approved sample, nara beige porcelanosa as per approved sample, ffl, thk. marble threshold, slope, angle trim as per approved sample

Raw text data extracted from CAD file:

13 3 20 VARIABLE \W5.95972; 440mmX660mm \W5.95972; CASCAIS NOCE \W5.95972; PORCELANOSA \W3.91210; AS PER APPROVED \W3.91210; SAMPLE \W0.10258; 333mmX1000mm NARA \W0.10258; BEIGE PORCELANOSA \W3.91210; AS PER APPROVED \W3.91210; SAMPLE SCREED STRUCTURAL SLAB 2-3mm THK. HIGH PERFORMANCE TILE ADHESSIVE MORTAR \W0.23810; AS PER APPROVED \W0.23810; SAMPLE \W0.19048; 600mmX600mm DARK \W0.19048; GRAY PORCELAIN TILES \W3.04762; AS PER APPROVED \W3.04762; SAMPLE 333mmX1000mm NARA BEIGE PORCELANOSA \W3.66667; AS PER APPROVED \W3.66667; SAMPLE 13.00000000000182 3.0 \W2.37967; FFL \W2.37967; ±0.150 \W4.73555; FFL \W4.73555; ±0.145 19.63173191793612 5 20mm THK. MARBLE THRESHOLD \LLOBBY \LTOILET SLOPE 25mmx25mmX4mm \W2.09524; S/S ANGLE TRIM \W0.52381; AS PER APPROVED \W0.52381; SAMPLE

Language	English
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, bathroom, construction details section, cut construction details, DETAIL, details, DWG, flooring, lobby, marble, space, tiles, toilet, transition
