Tiled Roof DWG Detail for AutoCAD

Tiled Roof DWG Detail for AutoCAD

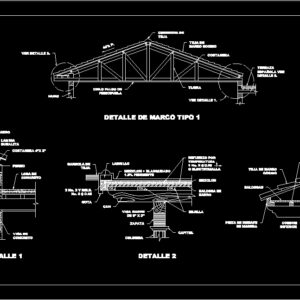

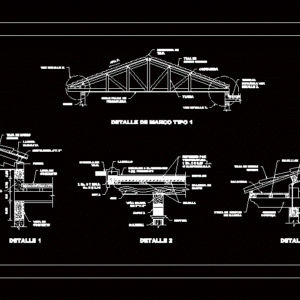

Tiled roof details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Wall, false fibroduela sky, scissors, roof tile, see detail, coastal, clay tile, Spanish terrace see more details, see detail, frame detail type, upper cord, lower string, Wall, wooden crown sole, wood finishing piece, tiles, clay tile, coastal, grids, capital, column, shoe, beam, dog, rack, clay tile, mix, drop, do not. eslb. do not., brick, tile gargoyle, whitening blending pending, Temperature reinforcement no. electromalla, detail, concrete beam, gotten up, concrete slab, duralite lamina, clay tile, upper cord, lower string, molding, cap screw, coastal, detail

Raw text data extracted from CAD file:

0.15 0.30 0.2 0.20 MURO CIELO FALSO DE FIBRODUELA TIJERA CUMBRERA DE TEJA 40% P. VER DETALLE 3. COSTANERA TEJA DE BARRO COCIDO TERRAZA ESPAÑOLA VER DETALLE 2. VER DETALLE 1. DETALLE DE MARCO TIPO 1 CORDON SUPERIOR CORDON INFERIOR MURO SOLERA DE CORONA DE MADERA 6" X 8" PIEZA DE REMATE DE MADERA BALDOSAS TEJA DE BARRO COCIDO COSTANERA 4" X 2" REJILLLAS CAPITEL COLUMNA ZAPATA VIGA MADRE DE 8" X 3" CAN REJILLA BALDOSA DE BARRO MEZCLON GOTA 2 No. 3 Y ESLB. No. 2 @ 0.15 LADRILLO GARGOLA DE TEJA MEZCLON + BLANQUEADO 1.5% PENDIENTE REFUERZO POR TEMPERATURA 1 No. 2 @ 0.20 O ELECTROMALLA DETALLE 2 DETALLE 3 VIGA DE CONCRETO 0.30 0.2 0.20 0.15 LEVANTADO LOSA DE CONCRETO LAMINA DURALITA TEJA DE BARRO COCIDO CORDON SUPERIOR CORDON INFERIOR MOLDURA PERNO COSTANERA 4"X 2" DETALLE 1

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, details, DWG, hangar, lagerschuppen, roof, shed, structure, terrasse, tile, toit, wooden structure
