Tourist Cabins 2D DWG Design Section for AutoCAD

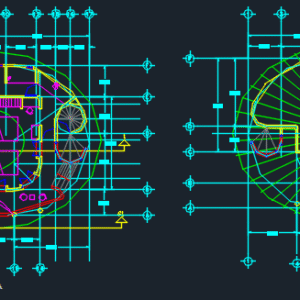

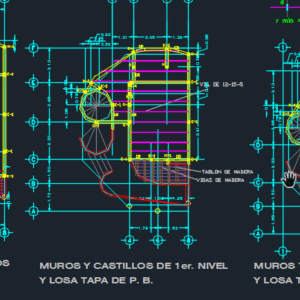

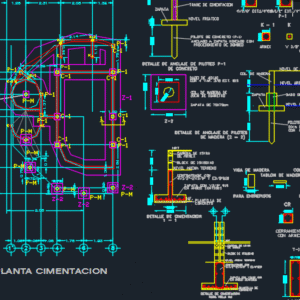

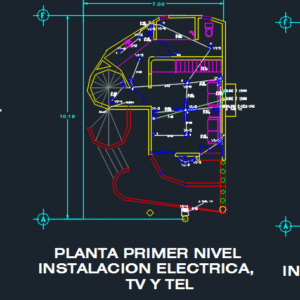

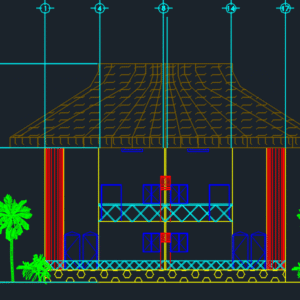

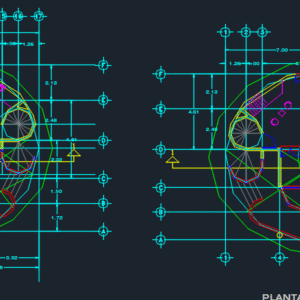

These tourist cabins are composed by modules of four rooms, with three levels, in the ground plant has a bedroom, a bathroom, and the living room, on the first level a living room, and bathrooms, and on the third level a bedroom, a living room and a terrace. You can see the floor plans, a front and side view, and the plans of the sanitary and electrical installations
Language | Spanish |
Drawing Type | Section |
Category | Hotel, Restaurants & Recreation |
Additional Screenshots |
|
File Type | dwg, zip |
Materials | Concrete, Steel, Wood |
Measurement Units | Metric |
Footprint Area | 50 - 149 m² (538.2 - 1603.8 ft²) |
Building Features | |
Tags | 2d, autocad, bathroom, bedroom, cabins, Design, details, DWG, elevations, front view, hostel, Hotel, inn, plants, resort, section, sections, terrace, three levels, tourist, tourist resort, villa |
