Transventilated Facade DWG Block for AutoCAD

Transventilated Facade DWG Block for AutoCAD

Transventilated facade – Invest roof and terrein

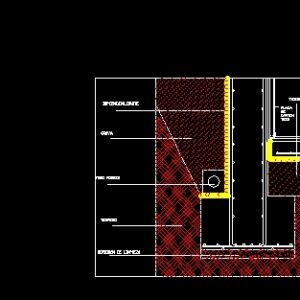

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cellular concrete for the formation of slopes, regulation mortar, Oxi-acid sheet with polyethylene reinforcement, organic felt, thermal insulation, geotextile felt, gravel riddle washed, galvanized sheet metal coping, section e:, plate, section, cleaning concrete, ground, concrete slab, galvanized steel profile, mortar to protect the asphalt fabric, galvanized steel substructure, mortar bed, perforated brick, fixing the anchors with stainless steel screws, stone flooring, limestone, extruded polyurethane insulation, waterproofing sheet, plasterboard, porous tube, gravel, waterproofing, tile, mortar, allone, concrete slab, galvanized steel substructure, fixing the anchors with stainless steel screws, perforated brick, extruded polyurethane insulation, limestone

Raw text data extracted from CAD file:

HORMIGÓN CELULAR PARA LA FORMACIÓN DE PENDIENTES MORTERO DE REGULACIÓN LÁMINA DE OXIASFALTO CON ARMADURA DE POLIETILENO FIELTRO ORGÁNICO AISLANTE TÉRMICO FIELTRO GEOTEXTIL GRAVILLA CRIBADA Y LAVADA ALBARDILLA DE CHAPA GALVANIZADA SECCIÓN E: 1/10 PLACA DE CARTÓN-YESO SECCIÓN E:1/15 HORMIGÓN DE LIMPIEZA TERRENO SOLERA DE HORMIGÓN PERFIL DE ACERO GALVANIZADO MORTERO PARA PROTEGER LA TELA ASFÁLTICA SUBESTRUCTURA DE ACERO GALVANIZADO CAMA DE MORTERO LADRILLO PERFORADO FIJACIÓN DE LOS ANCLAJES CON TORNILLOS DE ACERO INOXIDABLE SOLADO DE PIEDRA PIEDRA CALIZA AISLAMIENTO DE POLIURETANO EXTRUIDO LÁMINA IMPERMEABILIZANTE PLACA DE CARTÓN YESO TUBO POROSO GRAVA IMPERMEABILIZANTE BALDOSA MORTERO TODOUNO SOLERA DE HORMIGÓN SUBESTRUCTURA DE ACERO GALVANIZADO FIJACIÓN DE LOS ANCLAJES CON TORNILLOS DE ACERO INOXIDABLE LADRILLO PERFORADO AISLAMIENTO DE POLIURETANO EXTRUIDO PIEDRA CALIZA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	auskleidung, autocad, beschichtung, block, coating, DWG, facade, granit, Granite, granito, pedra, revestimento, revêtement, roof, wall covering
