Trapezoidal Threads DWG Block for AutoCAD

Trapezoidal Threads DWG Block for AutoCAD

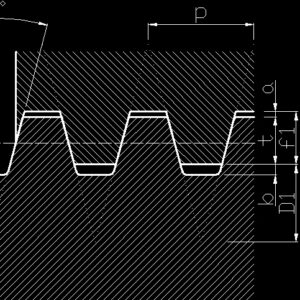

Trapezoidal threads – Mechanic

Raw text data extracted from CAD file:

h h/2 h/2 de dm c f di b t a D1 f1 30° p r h h/2 h/2 de dm c f di b t a D1 f1 5 p r b = 1,866p f = 0.5p + a f1 = 0,5p + 2a - b t = 0.5p + a - b c = 0.341p

Language	N/A
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	anlassen, autocad, block, bohren, broca, de forage, drill, DWG, filetage, gewinde, la trempe, mechanic, roscas, screw, têmpera, tempering, threads, trapezoidal
