Truss Girder Beam DWG Detail for AutoCAD

Truss Girder Beam DWG Detail for AutoCAD

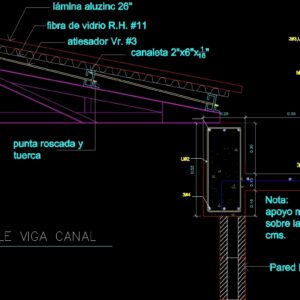

Detail of metal truss girder supported channel / beam / channel

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

aluzinc foil, fiberglass r.h., stiffener vr., threaded tip nut, note: minimum support on beam cms., Block of, detail beam channel, aluzinc foil, fiberglass r.h., stiffener vr., threaded tip nut, Block of

Raw text data extracted from CAD file:

lámina aluzinc 26" fibra de vidrio R.H. #11 \A1;canaleta 2"x6"x\S1/16;" atiesador Vr. #3 punta roscada y tuerca 0.25 0.30 0.10 0.15 0.55 0.10 0.55 0.85 0.75 0.25 0.15 Nota: apoyo minimo sobre la viga 15 cms. 3#4 3#3 1#3@0.40 5 5 5 5 5 5 5 5 U#2 bloque de 4" 2#3,U#2@0.20 5 5 5 DETALLE VIGA CANAL lámina aluzinc 26" fibra de vidrio R.H. #11 \A1;canaleta 2"x6"x\S1/16;" atiesador Vr. #3 punta roscada y tuerca \A1;Pared bloque de 6"

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, beam, channel, cover, dach, DETAIL, DWG, girder, hangar, lagerschuppen, metal, roof, shed, structure, supported, terrasse, toit, truss
