Union Flagstone Dome DWG Detail for AutoCAD

Union Flagstone Dome DWG Detail for AutoCAD

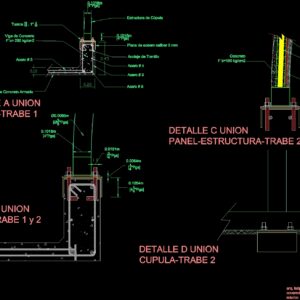

Detail union armed concrete beam with dome steel profile – Roof of cement panel

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Concrete beam, Reinforced concrete slab, steel, steel, Screw anchor, Plate caliber mm, Dome structure, Reel steel in elliptical form, concrete, mortar, Detail union, Arq. Felipe covarrubias melgar mexico

Raw text data extracted from CAD file:

\A1;0.1016m \A1;[4"Pgs] \A1;0.1016m \A1;[4"Pgs] 0.20 0.45 0.10 \A1;0.1016m [4"Pgs] \A1;0.0064m [\S1/4;"Pgs] \A1;0.1064m [4\S1/4;"Pgs] \A1;0.0191m [\S3/4;"Pgs] \A1;\U+22050.0095m [\U+2205\S3/8;"Pgs] 5 5 5 5 5 Viga de Concreto F´c= 200 kg/cm2 Losa de Concreto Armado Acero # 3 \A1;Tuerca \S18/16; , 1" \S2/16; Acero # 6 Acero # 3 Acero # 4 Anclaje de Tornillo Placa de acaero caliber 5 mm Estructura de Cúpula 5 5 5 5 5 \A1;Estructura W fy=5 000 kg/cm2 Acero de refuezo en forma elicoidal Concreto F´c=150 kg/cm2 Mortero cem-are 1:4 f´c=100 kg/cm2 DETALLE B UNION CUPULA-TRABE 1 y 2 DETALLE A UNION CUPULA-TRABE 1 DETALLE C UNION PANEL-ESTRUCTURA-TRABE 2 DETALLE D UNION CUPULA-TRABE 2 arq. felipe covarrubias melgar covarrubiasfm@hotmal.com méxico

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
