Valve With Sinpost DWG Block for AutoCAD

Valve With Sinpost DWG Block for AutoCAD

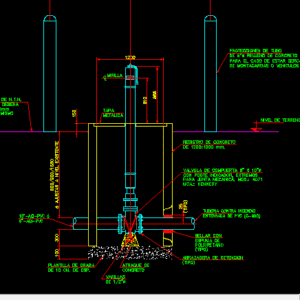

Valve with signpost installed at exterior for systems against fire

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Esc., detail, Adjust existing level, Buried pvc, to be, The record should, In the area of n.t.n., Above it, Fire pipe, open, Adjust existing level, top, Metal, peephole, With post ends, gate valve, For joint mod .:, Mca .: kennedy, Foam, polyurethane, Seal with, Recording template, Cm. Of esp., Berth of, Retaining clamp, Mm., Concrete registration, concrete, Rods, Level of natural terrain, Concrete Filler, Tube protections, Forklift trucks, In the case of being close to steps, To network, Gral. C.i., gate valve, With signpost, metal lid, Concrete dock, Recording template, Cm. Of esp., open, peephole, N.t.n., For valve, Concrete registration, Gral. C.i., To network, Mm.

Raw text data extracted from CAD file:

A ESC. 1: DETALLE N.P.T.+0.00 \A1;1200 \A1;1200 \A1;100 \A1;25 \A1;300 \A1;1200 \A1;600/900/1550 ó AJUSTAR A NIVEL EXISTENTE \A1;150 \A1;866 \A1;610 6"-ACI-PVC ENTERRADA DE PVC (C-900) ESTAR A 150mm EL REGISTRO DEBERA EN EL AREA DE N.T.N. ARRIBA DEL MISMO 610 866 TUBERIA CONTRA INCENDIO 10"-ACI-PVC ó (TIPO) 150 ABIERTO 600/900/1550 ó AJUSTAR A NIVEL EXISTENTE 1200 300 TAPA METALICA L C MIRILLA CON POSTE INDICADOR, EXTREMOS VALVULA DE COMPUERTA 8" ó 10"d PARA JUNTA MECANICA, MOD.: 4071 MCA.: KENNEDY ESPUMA DE (TIPO) POLIURETANO SELLAR CON PLANTILLA DE GRABA DE 10 CM. DE ESP. ATRAQUE DE 25 (TIPO) ABRAZADERA DE RETENCION 100 DE 1200x1000 mm. REGISTRO DE CONCRETO CONCRETO VARILLAS DE 1/2"d 1200 1200 NIVEL DE TERRENO NATURAL DE 6"d RELLENO DE CONCRETO PROTECCIONES DE TUBO DE MONTACARGAS O VEHICULOS DE CARGA PARA EL CASO DE ESTAR SERCAS DE PASOS N.P.T.+0.00 \A1;300 \A1;150 \A1;900 \A1;760 \A1;1016 HACIA RED GRAL. C.I. 10"-ACI-PVC 8"-ACI-PVC 6"-ACI-PVC 4"-ACI-PVC VALVULA DE COMPUERTA CON POSTE INDICADOR DE 10"d 150# TAPA METALICA ATRAQUE DE CONCRETO PLANTILLA DE GRABA DE 10 CM. DE ESP. ABIERTO 1016 760 C MIRILLA L 900 150 N.T.N. PARA VALVULA REGISTRO DE CONCRETO 4"-ACI-PVC GRAL. C.I. HACIA RED 300 DE 1200x1200 mm. DE 8"d 150# DE 6"d 150# DE 4"d 150# 6"-ACI-PVC 8"-ACI-PVC 10"-ACI-PVC

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, bombeiro, d'incendie, DWG, exterior, feuerwehrmann, fire, firefighter, hidrantes instalação, hydrant, hydranten, incendio, installation feuer, installed, installing fire, kläranlage, le feu d'installer, pompier, systems, treatment plant, valve
