Ventilated Facade DWG Detail for AutoCAD

Ventilated Facade DWG Detail for AutoCAD

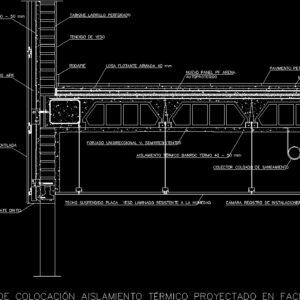

Detail thermal insulation placement in ventilated facade.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Suspended ceiling laminated gypsum plate resistant to moisture, camera recording facilities, unidirectional forging v. semi-resistant, hanging sanitary collector, installation detail thermal insulation projected on ventilated façade, stone pavement, skirting board, gripping mortar, perforated brick partition, plaster laying, ventilated façade system, air chamber, lintel, new panel pf sand, self-protected

Raw text data extracted from CAD file:

TECHO SUSPENDIDO PLACA YESO LAMINADO RESISTENTE A LA HUMEDAD CÁMARA REGISTRO DE INSTALACIONES AISLAMIENTO TÉRMICO BANROC TERMO 40 - 50 mm FORJADO UNIDIRECCIONAL V. SEMIRRESISTENTES COLECTOR COLGADO DE SANEAMIENTO DETALLE DE COLOCACIÓN AISLAMIENTO TÉRMICO PROYECTADO EN FACHADA VENTILADA PAVIMENTO PETREO RODAPIÉ MORTERO DE AGARRE LOSA FLOTANTE ARMADA 40 mm TABIQUE LADRILLO PERFORADO TENDIDO DE YESO AISLAMIENTO TÉRMICO BANROC TERMO 40 - 50 mm SISTEMA DE FACHADA VENTILADA CÁMARA DE AIRE CHAPA DE REMATE DINTEL NUEVO PANEL PF ARENA AUTOPROTEGIDO
