Wall Court 30 DWG Block for AutoCAD

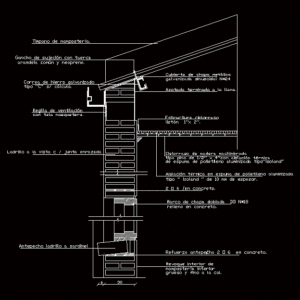

Court opening in wall 30 and cover

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

reinforcement sill in concrete., made of aluminised polyethylene foam, thermal insulation in aluminized polyethylene foam, machimbrado wood ceiling, brick, sardinel brick sill, fine thickness lime., interior masonry, interior plaster, type ” insuland ” mm thick., pine type of thermal insulation, filling in concrete., specific., sheet metal frame dd, with mosque fabric., type ” c ” calculation., securing hook with nut, galvanized iron strap, ventilation valve, common washer neoprene., masonry tympanum, galvanized sinusoidal, sheet metal cover, whipped finished trowel., ceiling structure, ribbon

Raw text data extracted from CAD file:

\A1;30 Refuerzo antepecho 2 O 6 en concreto. de espuma de polietileno aluminizada tipo''isoland'' Aislación térmica en espuma de polietileno aluminizada Cielorraso de madera machimbrada Ladrillo a la vista c / junta enrazada 30 6 Antepecho ladrillo a sardinel grueso y fino a la cal. mampostería interior Revoque interior de tipo '' isoland '' de 10 mm de espesor. tipo pino de 1/2'' x 4''con aislación térmica relleno en concreto. 2 O 6 en concreto. Marco de chapa doblada DD N*18 con tela mosquetera. tipo ''C'' s/ cálculo. Gancho de sujeción con tuerca Correa de hierro galvanizado Regilla de ventilación arandela común y neoprene. Timpano de mampostería. galvanizada sinusoidal N*24 Cubierta de chapa metálica Azotado terminado a la llana. Estructura cielorraso listón 1''x 2''.

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, brick walls, constructive details, court, cover, details, DWG, mur de briques, opening, panel, parede de tijolos, partition wall, wall, ziegelmauer
