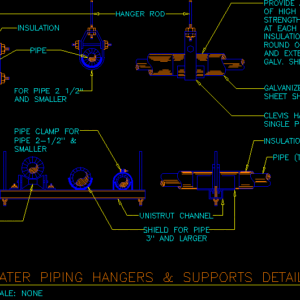

WATER PIPING HANGERS

Drawing labels, details, and other text information extracted from the CAD file:

elevation:, scale: none, water piping hangers supports detail, pipe roller for pipe and larger, pipe clamp for pipe smaller, for pipe and smaller, insulation, pipe, hanger rod, provide section of high compression strength insulation at each hanger point. insulation may be half round or full round and extending beyond galv. shield each way., galvanized iron sheet shield, clevis hanger for single pipe runs, insulation, pipe, unistrut channel, shield for pipe and larger

Raw text data extracted from CAD file:

1 SCALE:1/4" = 1'-0" ELEVATION: 1 SCALE: NONE WATER PIPING HANGERS & SUPPORTS DETAIL PIPE ROLLER FOR PIPE 3" AND LARGER PIPE ROLLER FOR PIPE 3" AND LARGER PIPE CLAMP FOR PIPE 2-1/2" & SMALLER FOR PIPE 2 1/2" AND SMALLER INSULATION PIPE HANGER ROD PROVIDE A SECTION OF HIGH COMPRESSION STRENGTH INSULATION AT EACH HANGER POINT. INSULATION MAY BE HALF ROUND OR FULL ROUND AND EXTENDING 2" BEYOND GALV. SHIELD EACH WAY. GALVANIZED IRON SHEET SHIELD CLEVIS HANGER FOR SINGLE PIPE RUNS INSULATION (TYP.) PIPE (TYP.) UNISTRUT CHANNEL SHIELD FOR PIPE 3" AND LARGER

Language	English
Drawing Type	Block
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	armaturen, autocad, block, chuveiro, douche, dusche, DWG, paper holder, papier, papierhalter, piping, porta papel, porte, robinetterie, sanitaire, sanitarios, sanitärkeramik, sanitary ware, shower, taps, torneiras, water
