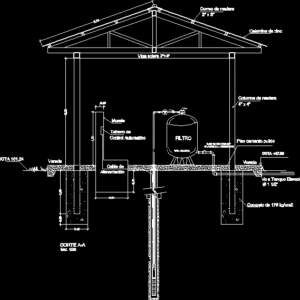

Water Well DWG Block for AutoCAD

Well of health

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Polished cement floor, cut, Zinc calamine, Concrete of, Quota, Esc., Beam sill, Cable, feeding, Go high tank, Board of, automatic control, Wall, Wood strap, Wooden column, sidewalk, Return tube, N., Valv. multiple, filter, Quota, Pool detail, flat:, region:, province:, sheet:, district:, Esc:, date:, Approved, Rev .:, Flat type:, Proy .:, Dib .:

Raw text data extracted from CAD file:

2,00 0,80 0,30 1,00 0,60 0,40 0,40 0,20 2,23 Piso cemento pulido CORTE A-A Calamina de zinc Concreto de 175 kg/cm2 COTA 101.24 Esc. 1/25 5 5 Viga solera 2"x4" Cable de Alimentación Va a Tanque Elevado Tablero de Control Automatico Murete Correa de madera 2" x 3" 5 5 5 5 Columna de madera 4" x 4" 5 5 Vereda Vereda 5 Ø 1 1/2" TUBO DE RETORNO Ø2" VA A BOQUILLA DE RETORNO VALV. MULTIPLE FILTRO COTA +97.50 DETALLE DE PILETA PLANO: REGION: PROVINCIA: LAMINA: V°B°: DISTRITO: ESC: FECHA: APROB.: REV.: TIPO PLANO: PROY.: DIB.:

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood
Measurement Units
Footprint Area
Building Features	Pool
Tags	autocad, block, DWG, einrichtungen, facilities, gas, gesundheit, health, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, wasser bestimmung, water, well
