Wood Construction Details DWG Detail for AutoCAD

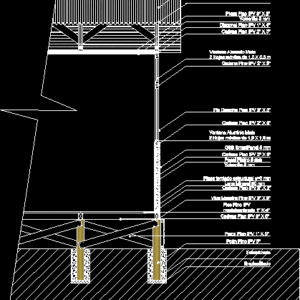

Construction detail of wood on stilts

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

embossed, stabilized, pine ipv pollinator, piece pine ipv, pine master beam ipv, ipv pine chain, mineral wool mm, felt paper mm, ipv pine chain, osb smartpanel mm, ipv pine chain, pine floor ipv tongue and groove, right foot pine ipv, matt aluminum window sheets, structural laminated plate mm, volcanite mm, ipv pine chain, matt aluminum window sheets, costanera pine ipv, ipv pine truss, pine diagonal ipv, ipv pine chain, volcanite mm, piece pine ipv, ipv pine chain, corrugated zinc mm, cut scanned esc.

Raw text data extracted from CAD file:

Emplantillado Estabilizado Polín Pino IPV 5" Pieza Pino IPV 1" X 5" Viga Maestra Pino IPV 3" X 5" Cadena Pino IPV 2" X 3" Lana Mineral 50 mm Papel Fieltro 8 mm Cadena Pino IPV 2" X 3" OSB SmartPanel 8 mm Cadena Pino IPV 2" X 3" Piso Pino IPV machihembrado 1" X 4" Pie Derecho Pino IPV 3" X 2" Ventana Aluminio Mate 2 Hojas m\U+00F3viles de 1,0 X 1,0 m Placa terciado estructural e=8 mm Volcanita 8 mm Cadena Pino IPV 2" X 3" Cadena Pino IPV 2" X 3" Ventana Aluminio Mate 2 Hojas m\U+00F3viles de 1,0 X 0,5 m Costanera Pino IPV 2" X 2" Cercha Pino IPV 1" X 5" Diagonal Pino IPV 1" X 4" Cadena Pino IPV 2" X 3" Volcanita 8 mm Pieza Pino IPV 3" X 2" Cadena Pino IPV 3" X 5" Zinc acanalado e=0.4 mm CORTE ESCANTILLON esc. 1/20

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction, DETAIL, details, détails de construction en bois, DWG, holz tür, holzbau details, Wood, wood construction details, wooden door, wooden house
