Wooden Deck DWG Detail for AutoCAD

Wooden Deck DWG Detail for AutoCAD

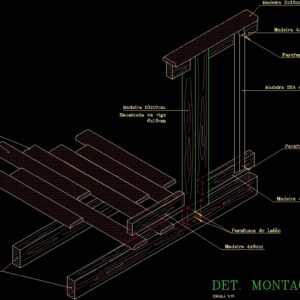

Isometric view with technical specifications – Details of assembly

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

embedded in the beam, wood, Wooden beam, wooden planks, det. deck mount, screws, wood, scale, wood, brass screw, wood cm

Raw text data extracted from CAD file:

Encaixada na viga Madeira 10x10cm Viga de Madeira 6x12cm Tabuas de Madeira 2,5x10cm DET. MONTAGEM DECK Parafusos de Latao Madeira 4x8cm ESCALA 1:10 ~ 6x16cm Madeira 4x8cm Madeira 2x12cm Madeira 4x8cm Parafuso de Latão Parafuso de Latão Madeira 3X4 cm

Language	Portuguese
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	ASSEMBLY, assoalho, autocad, deck, DETAIL, details, DWG, fliese, fließestrich, floating floor, floor, flooring, fußboden, holzfußboden, isometric, piso, plancher, plancher flottant, specifications, technical, tile, View, wooden
