Wooden Door DWG Plan for AutoCAD

Wooden Door DWG Plan for AutoCAD

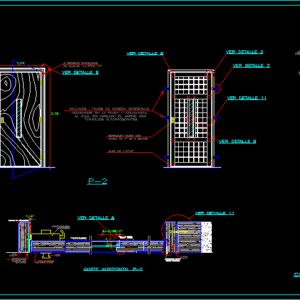

Plans, vertical and horizontal sections of a wooden door.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

concrete shelving, made on site, anchors: wooden studs, self-tapping screws, to which the frame will be anchored, placed on the plate and columneta, forte lock, with alum.de, wooden filling, previous greased, lock type heavy, bruña, sheet metal, handle, recess of frame, for anchoring of sheet, wooden frame, hinge nasturtium, heavy aluminized, tempered glass, npt, facade, flush, interior, previously greased, lock forte, exterior

Raw text data extracted from CAD file:

ESTANTERIA DE CONCRETO HECHA EN OBRA \A1;1.00 \A1;1/4" \A1;3/4" \A1;3/4" \A1;2-3/8" \A1;1/2" \A1;2 3/8" \A1;3/4" \A1;3/4" \A1;2.15 5 5 ANCLAJES : TACOS DE MADERA EMBREADOS TORNILLOS AUTORROSCANTES AL CUAL IRA ANCLADO EL MARCO CON COLOCADOS EN LA PLACA Y COLUMNETA, MANIJA DE 4" DE 2 GOLPES CERRADURA FORTE CON 3 BISAGRAS CAPUCHINAS DE ALUM.DE 2.1/2"x2.1/2" VER DETALLE 8 VER DETALLE 11 PLICA DE 1/2"X2" VER DETALLE 2 VER DETALLE 3 VER DETALLE 8 1/4"x1/4" TORNILLO DE Fe.(SUJECION) RELLENO DE MADERA 1CM DE ESPESOR DE 2 GOLPES PREVIA ENGRASADA CERRADURA TIPO PESADA BRUÑA PLATINA DE 3/32"x 3.1/8"x3.1/8" PARA SEGURO DE CHAPA (VER DETALLE) MANIJA DE 4" REBAJE DE BASTIDOR PARA ANCLAJE DE CHAPA 1/4" 3/4" 3/4" 2-3/8" CERCO DE MADERA 53mm x 155mm VER DETALLE 8 1/4"x1/4" BISAGRA CAPUCHINA ALUMINIZADO PESADO BRUÑA VER DETALLE 11 VIDRIO TEMPLADO DE 5 MM. 1/2" 2 3/8" 3/4" CORTE VERTICAL P-2 NPT FACHADA RAS DE 3/4" 1/4"x1/4" BRUÑA INTERIOR PREVIAMENTE ENGRASADA DE 2 GOLPES CERRADURA FORTE EXTERIOR VER DETALLE 8 P-2 CORTE HORIZONTAL P-2 VER DETALLE 9

Language	Spanish
Drawing Type	Plan
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Wood, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, door, DWG, horizontal, plan, plans, sections, vertical, wooden
