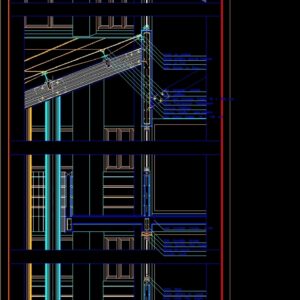

Wooden Structure Details DWG Section for AutoCAD

Wooden Structure Details DWG Section for AutoCAD

Section constructive –

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

scantillon esc., Pavement Finished Cement Sand Ceramic Rustic, moisture barrier polyethylene sheet mm, cm gravel layer, cm sand layer, stick mortar, radier cm, steel profile sill structure, pine plank lining oregon, window frame in laurel, tuned cement sand sikafloor, metal plate sill structure, triple glass, Jonquil laurel, laurel frame, upper floor pine oregon, reinforced concrete beam, reinforced concrete slab cm, rubber seal, support for cover, wood beam coigüe mm, metal tensors, transparent polycarbonate plate, reinforced concrete beam, metallic bolt, laminated beam coigüe mm, pvc lining, anchor bolt, metal plate tension bracket

Raw text data extracted from CAD file:

ESCANTILLON Y - Y ' 2 ESC. 1 : 5 Pavimento : Afinado cemento - arena y Cerámica Rústica Barrera de Humedad : Lámina de Polietileno 0.3 mm Capa de Ripio de 20 cm Capa de Arena de 10 cm Mortero de Pega Radier 10 cm Perfil Acero ( estructura antepecho ) Forro Tablón Pino Oregón Marco ventana en Laurel Afinado cemento - arena y Sikafloor 91 Pletina metálica estructura de antepecho Vidrio Triple Junquillo Laurel Marco de Laurel Solera Superior Pino Oregón VIGA Hormigón Armado Losa Hormigón Armado 12 cm Sello Burlete de Goma Soporte "ARAÑA" para cubierta Viga Madera Coigüe 75 x 150 mm Tensores Metálicos Placa Policarbonato Transparente VIGA Hormigón Armado Perno Metálico VIGA Mad Laminada Coigüe 75 x 350 mm Forro de PVC Perno de Anclaje Pletina Metálica soporte Tensores

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, constructive, details, détails de construction en bois, DWG, holz tür, holzbau details, section, structure, Wood, wood construction details, wooden, wooden door, wooden house
